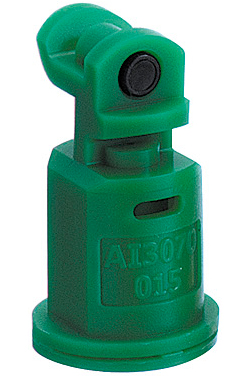

Air Induction Dual Pattern Flat Spray Tip Nozzle, Green Polymer, 30° Forward, 70° Backward Spray, .015 Orifice

For Fusarium Head Blight in Wheat

AI3070 TeeJet Nozzles feature a dual pattern 30 forward, 70 backward, designed specifically for fungicide application on cereal crops. 30 Forward pattern penetrates dense canopy, 70 backward pattern covers crop seed head. Acetal polymer material. Includes CP98578-1NY black auto alignment cap and 19438 EPDM included. (Viton® is extra). Use 100 Mesh filter on .015 size, 50M on other sizes. Drift-resistant droplet size not available.

• Produces two wide angle, flat spray patterns for uniform coverage in broadcast applications.

• 30° Forward tilted spray penetrates dense crop canopies, while the backward tilted 70° spray maximizes coverage of the crop seed head.

• Drift resistant drops are produced through the use of a venturi air aspirator

• Large round free passages minimize clogging

• All acetal construction for excellent chemical & wear resistance.

• Removable pre-orifice for fast & easy cleaning.

• Automatic alignment with the use of
  CP98578-1NY cap.

• Suggested spray pressure range of 20 to 90 PSI.


• .50 GPM @ 40 PSI
• 20" Spacing GPA @ 12 MPH = 12.4
• 50 Mesh Screen

NOTE: Price Includes Auto Align Cap & EPDM Gasket.
