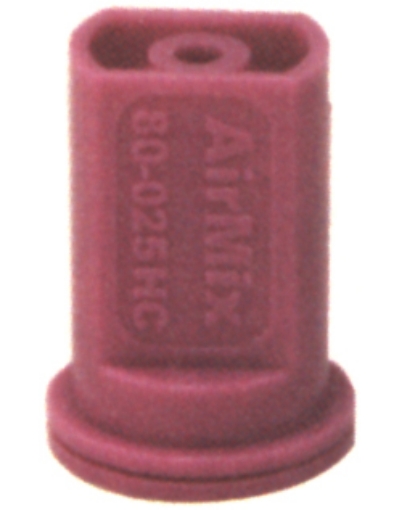

AMHC Low Drift AirMix® 80° Hollow Cone Nozzle. Drift resistant hollow cone spray pattern for banding and directed applications.
15-90 psi Overall pressure range
45-90 psi Optimal penetration and coverage
Suggested Spray Height: 16" to 36" (on 20" centers)
Two piece, polyacetal construction with EPDM o-ring. No tools required for disassembling.
Fits standard caps.
AirMix® Nozzles are a compact, two-piece air injection nozzle that fits in a standard cap, and can be cleaned without tools. The AirMix® utilizes a unique air cleaning system to prevent nozzle plugging. Please target 40 PSI when selecting nozzle size, to allow for changes in speed. Higher Pressures are recommended for penetrating dense canopies and for coverage critical contact chemicals. For single tip application see cap GTAMTG and gasket GT125.
Products specifications
| Body Material | Polyacetal |
| Orifice Size | .025 |
| Max PSI | 90 |
| Color | Red |
| Spray Pattern | Hollow Cone |
| Spray Angle | 80 Deg |
| Series | AirMix |
| Manufacturer Part Number | |
