With Oasis™ Wet Seal

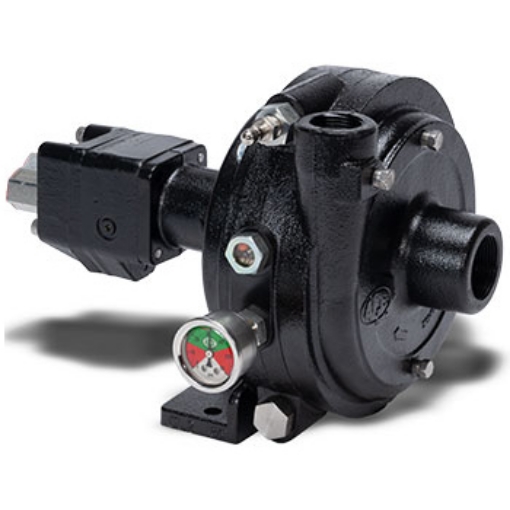

Ace's 125 PRO 5 Series Pumps are engineered with advanced features for improved reliability, enhanced performance, and added protection against costly downtime. Designed with high-efficiency, close-coupled hydraulic motors. Cast iron construction with black E-coating (epoxy) for added corrosion resistance. Also feature larger bearings for increased pump longevity and a greater number of interchangeable components. Pulse width modulation (PWM) control valve options available on 206 & 304 sizes.
FMCWS Models incorporate Ace Pump's Oasis™ Double Wet Seal technology to isolate seals from abrasive/corrosive materials & prevent run-dry failure of any length.
Features:- Type: Centrifugal
- Pump Body Material: Epoxy-coated Cast Iron
- Inlet Size/Type: 1-1/4" FPT
- Outlet Size/Type: 1" FPT
- Max GPM: 110 GPM
- Max PSI: 120 PSI
- Seal Material: Carbon ceramic/FKM
- Impeller Diameter: 5.5"
- Shaft Type: Solid
- Shaft Size (OD Diam): 5/8"
- Drive Type: Hydraulic Motor
- Max RPM: 5,200 RPM
