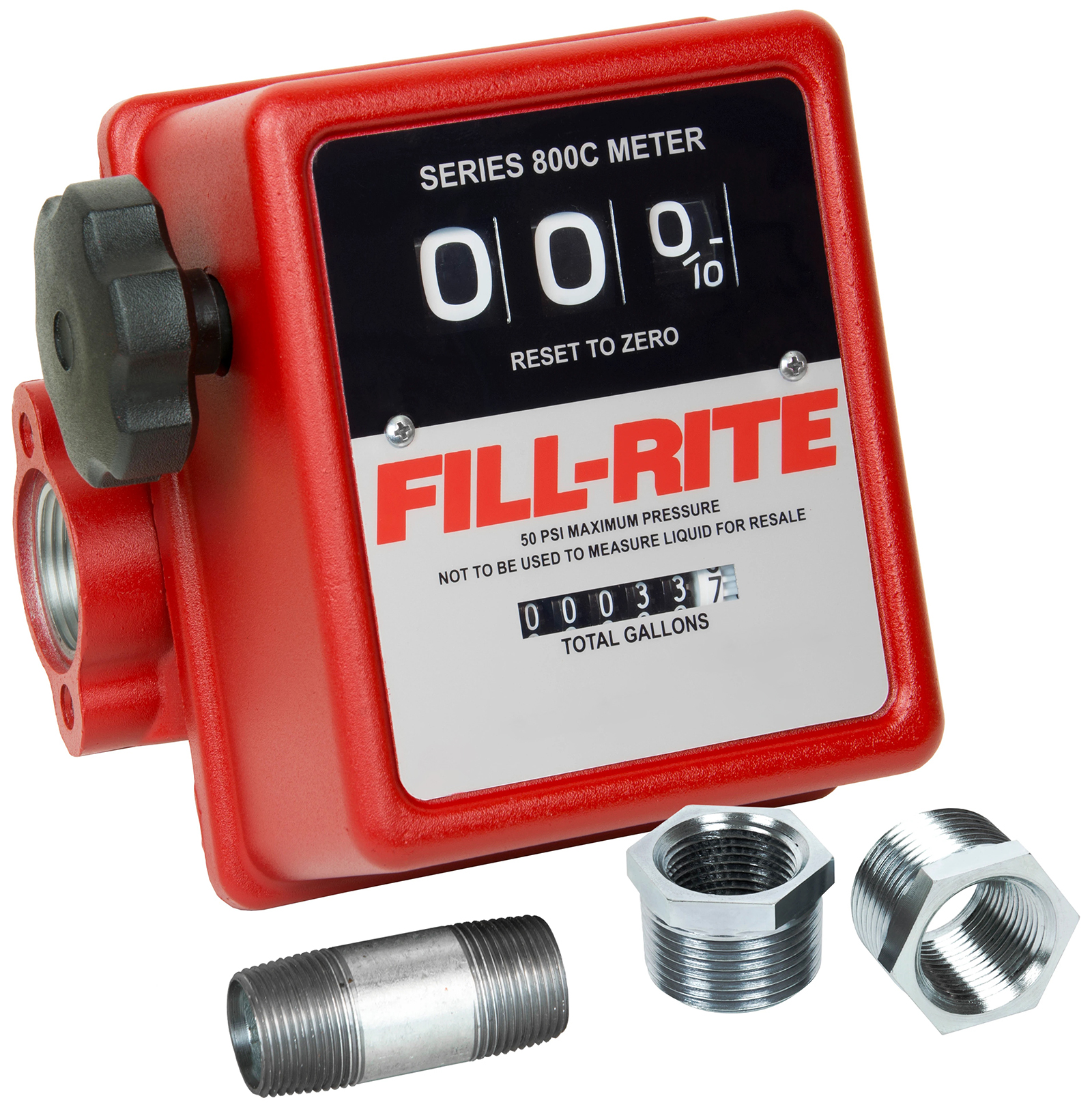

Includes 3/4" Pipe Fittings
Fill-rite's 800 Series Mechanical Fuel Transfer Meters provide reliable measurement and accuracy for a wide array of low-volume fuel transfer applications. Flow meters are constructed of cast-aluminum for maximum durability and added corrosion-resistance across the lifetime of the meter. The FR807C-1 flow meter measures fuels in 1/10 gallon increments up to 100 gallons per batch with +/- 1% accuracy, and measures flowrates between 5 – 20 GPM. A 5-digit, 100,000-gallon lifetime totalizer keeps track of total gallons measured. Approved for a wide array of fuels and kerosene products, but NOT recommended for use with biodiesel fuels (see 807CN-1 below).
Features:- Pump Body Material: Aluminum
- Display Type: 3-Digit Mechanical Inlet/Outlet Size: 1" FPT
- Unit of Measure: 1/10th Gallons
- Max Flowrate: 5 - 20 GPM Accuracy (+/- %): 1
- Repeatability (+/- %): 0.38
- Max Operating/Discharge Pressure: 50 PSI @ 70° F
- Operating Temperature Range: -15° to 150° F
- Warranty: 2 Years
NOT for resale use. Made in the USA.All meters register in Gallons per Minute unless otherwise noted.
