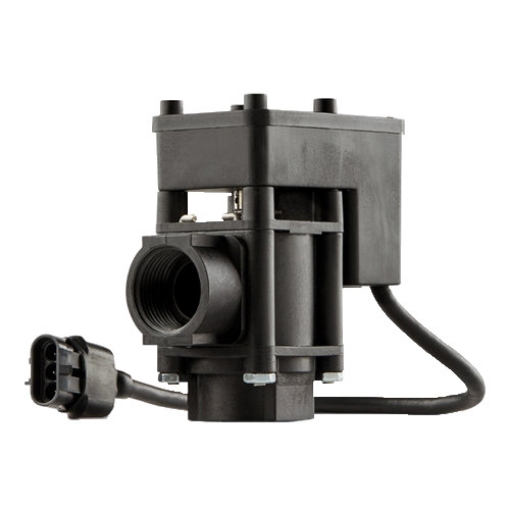

Motorized Electric Ball Valve, 1" FPT, 12-Volt, 2-Way, 3-Pin Weatherpack Connection

TIR Motorized Valves offer excellent control of a wide range of viscosities with medium pressure ranges, minimal pressure drops (only 5 PSI at max GPM), and high-volume flows. Drop-in style design makes installation quick and simple. Standard valves feature 1" NPT inlet and outlets. Stackable threaded and NPT flanged manifold options available. Valve housings are glass-filled nylon with 303 stainless-steel wetted parts. Viton® o-rings and Teflon seals are standard. Motors are totally enclosed with a protective, self-resetting fuse. Valves built with 12" 3-pin Weatherpack sealed electrical connections. 12-volt Open/Close times of 0.8 seconds.

Technical Specs:
  • Type: Motorized Ball Valve
  • Style: On-Off
  • Port Size: 1"
  • Port Number: 2
  • Body Material: Glass-filled Nylon
  • Ball/Disc Material: 303 stainless steel
  • Max GPM: 20 GPM (5 PSI drop; CV Rating of 8.94)
  • Flow Direction: 2-Way
  • Operation: 12 Volt DC (2.5 Amp)
  • Actuation Type: Electric
  • Actuation: 0.8 seconds
  • Connection Type: 1" FPT
  • Max Working Pressure: 150 PSI
  • Max Temp Range: 32° – 150° F

All valves available in 1-5 Banked Manifold Sections. TIR Motorized Valves compatible with TIR MV specific control systems ONLY. Call for Options.
Manufacturer: Texas Industrial Remcor
SKU: TX2402
$338.00
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
TIR Motorized Valves offer excellent control of a wide range of viscosities with medium pressure ranges, minimal pressure drops (only 5 PSI at max GPM), and high-volume flows. Drop-in style design makes installation quick and simple. Standard valves feature 1" NPT inlet and outlets. Stackable threaded and NPT flanged manifold options available. Valve housings are glass-filled nylon with 303 stainless-steel wetted parts. Viton® o-rings and Teflon seals are standard. Motors are totally enclosed with a protective, self-resetting fuse. Valves built with 12" 3-pin Weatherpack sealed electrical connections. 12-volt Open/Close times of 0.8 seconds.

Technical Specs:
  • Type: Motorized Ball Valve
  • Style: On-Off
  • Port Size: 1"
  • Port Number: 2
  • Body Material: Glass-filled Nylon
  • Ball/Disc Material: 303 stainless steel
  • Max GPM: 20 GPM (5 PSI drop; CV Rating of 8.94)
  • Flow Direction: 2-Way
  • Operation: 12 Volt DC (2.5 Amp)
  • Actuation Type: Electric
  • Actuation: 0.8 seconds
  • Connection Type: 1" FPT
  • Max Working Pressure: 150 PSI
  • Max Temp Range: 32° – 150° F

All valves available in 1-5 Banked Manifold Sections. TIR Motorized Valves compatible with TIR MV specific control systems ONLY. Call for Options.
*
*
*
