The

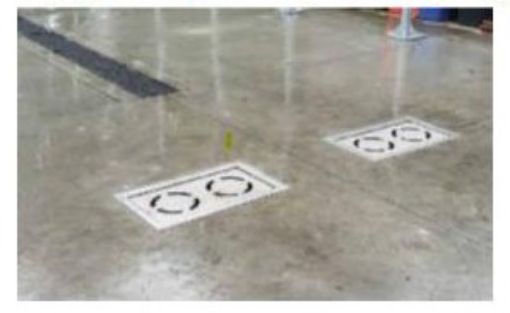

Mosmatic Undercarriage Pan Assemblies are designed for in-floor applications. Installers can either backfill concrete or frame in the housing for new pour applications. Or a concrete cutter can be used for existing pads. The lids are not rated for direct traffic. Pan assemblies include (1) stabilizer venturi nozzle for each orifice, but customer needs to advise as to flow rate for each orifice sizing. Flat back, vane nozzles
(not included) are inserted into each stabilizer on site. The assembly includes (2) DYT Mosmatic swivels, (2) rotary arm assemblies, and (4) stabilizer venturis.
Technical Data:- Pressure: Max 4,000 PSI
- Temperature: Max 250°F
- RPM: Up to 2,000 RPM
- Body Dimensions: 29.5" x 11.8" x 10.8"
- Water Connection: 3/4" FPT
- Water Drain: 2" FPT
- Throughput Medium: pH 3-12
- Weight: 71 lbs
- Construction: 304 Stainless-Steel
