Many Masport vacuum pumps are offered in package systems identified as Pro Pack and/or Pro Pack Plus (Complete). Both options have a Honda engine (electric start) as the drive option (other engine drive options available – call for specifications) pump packages which are mounted onto a base plate. The Pro Pack is a basic system that includes vacuum pump, electric start Honda engine, battery, and remote-mounted oil reservoir. The designation of the "Complete" or the Pro Pack "Plus" system(s) identifies all basic system components with the addition of pressure and vacuum relief valves, pressure/vacuum gauge, inlet filter, scrubber, and separator/muffler – unless otherwise noted. Please call with specifications for more product inquiries – not all available product options are listed. 1-Year performance warranty on Masport vacuum pumps.

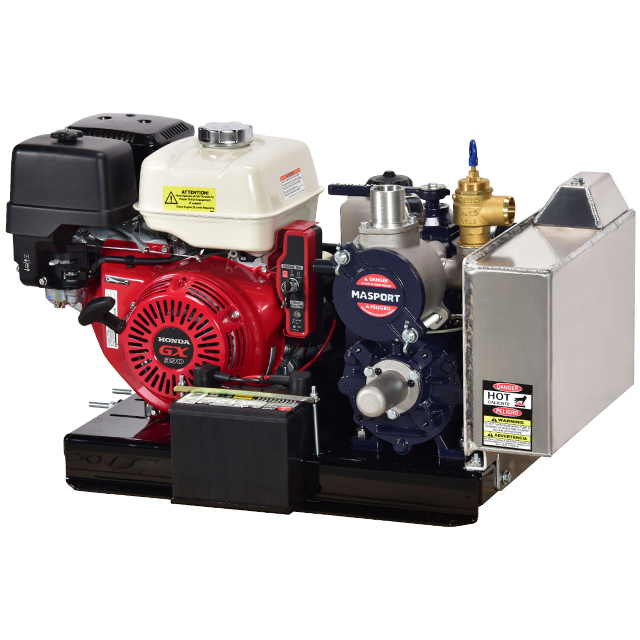

The Air-Cooled HXL4V Vacuum/Pressure Pump is direct driven by a 13HP electric start Honda gas engine. Inlet/outlet ports on the HXL4V pump are 1-1/2" FPT. Vane Flush port is ΒΌ" FPT. A major benefit of a direct drive unit means no belt squealing, slip or replacing. Designed for tank sizes up to 1,500 gallons.
- Maximum of 165 CFM
- Continuous Vacuum Rating: 20"
- Continuous Pressure Rating: 15 PSI
