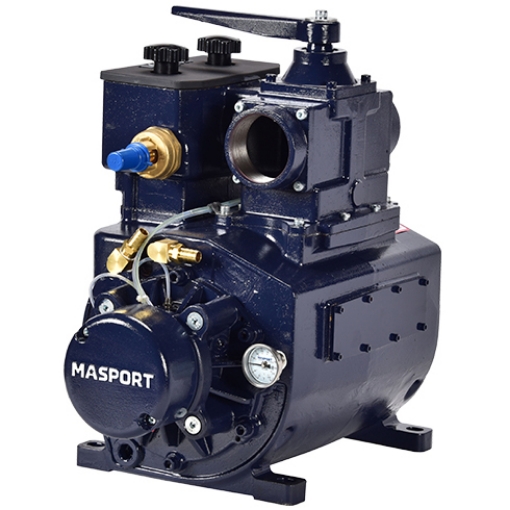

Vacuum / Pressure Pump, Model HYDRA, Water-Cooled, 3" FPT Ports, CCW Rotation, 407 CFM, 20 PSI Max. Continuous / 30 PSI Max. Intermittent, 6 Vane, 1400 RPM, Oil Reservoir Not Included

For 4000 Gallon Tanks

The liquid-stabilized design ensures reliable operation under extreme heat or cold weather conditions. Furthermore, this design allows the HYDRA Series to operate at a higher continuous vacuum rating. The HYDRA Series is able to achieve a maximum vacuum of 27" Hg (intermittent). The heavy-duty bearings paired with Viton® oil seals and Kevlar® vanes ensures superior pump life. The units include a mechanical oil pump that delivers the right amount of oil at all working levels – no adjustment is required. Integrated inlet filter, vacuum relief valve and control valve allows the pump to operate in vacuum or pressure mode. Remote-mounted oil reservoir sold separate. 1-Year performance warranty.

Features:

• Liquid Cooled Design

• 3" FPT Bolt On Flanges

• 1/4" FPT Vane Flush Port

• Vane Wear Inspection Ports

• Integrated SS Inlet Filter

• Integral Mtg. Bosses Guarantee Precise Shaft Alignment

• Specify CCW or CW Shaft Rotation

• 20 PSI Max. Continuous / 30 PSI Max. Intermittent

• 407 CFM Max. Rating
