Fill-Rite 115/230 Volt Diesel Fuel Pump, 35 GPM, with Hose & Automatic Nozzle

300 Series · Ultra Hi-Flow · Heavy Duty · UL Listed

Fill-rite's FR300 Series are Fill-rite's highest volume AC fuel transfer pumps – designed for the most demanding of fuel handling applications. Ideal for fueling heavy machinery or aboveground storage tanks. These 115/230-volt AC fuel pumps are built for long-lasting service under demanding operating conditions. For use with Gasoline & Diesel fuels. Max flowrate (at open) is 35 GPM.

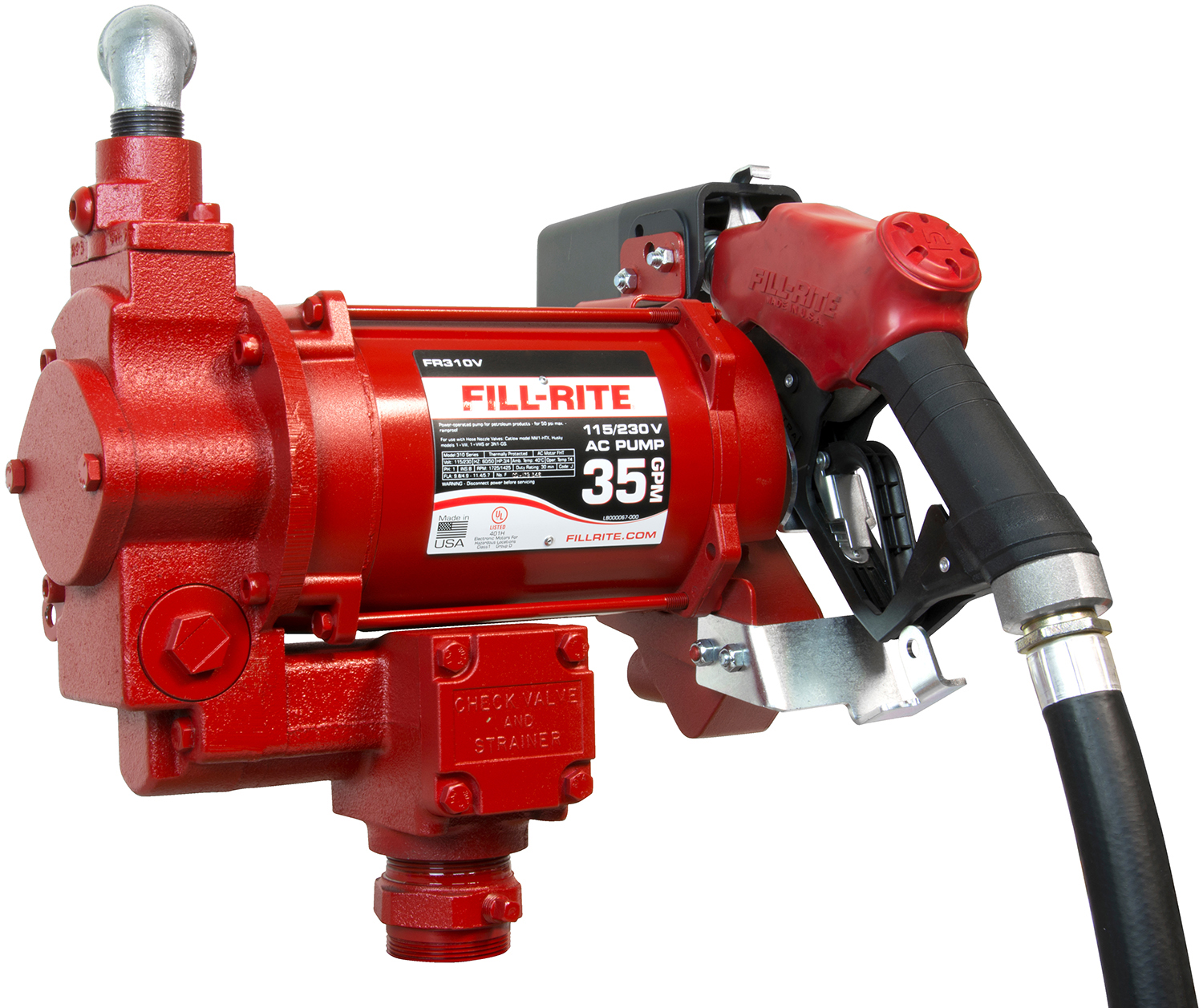

The FR310VB fuel pump features a 1-1/2" FPT inlet x 1" FPT outlet and a 3/4 Hp, 115/230-volt explosion-proof motor with thermal overload protection. Pump kit comes complete with a 1" ultra hi-flow automatic diesel nozzle (Red) and 1" x 18' fuel hose (with static wire), bung adapter, and a built-in check valve and 40-mesh strainer. Suction pipe not included and sold separately.

Specifications:

• Type: Positive Displacement (Rotary Vane)
• Pump Body Material: Cast Iron
• Inlet/Outlet Size: 1-1/2" FPT / 1" FPT
• Mounting Size/Type: 2" MPT Bung
• Max Flowrate: 35 GPM
• Duty Cycle: 30 Mins.
• Motor Power: 3/4 Hp
• Voltage: 115/230 Volt AC
• Max Amp Draw: 15 Amps
• Max Operating/Discharge Pressure: 26 PSI
• Operating Temperature Range: -17° to 105° F
• Suction Lift: 8'
• Warranty: 2 Year Limited Lifetime - 1 Year on Accessories

Viton® is a registered trademark of DuPont Performance Elastomers
