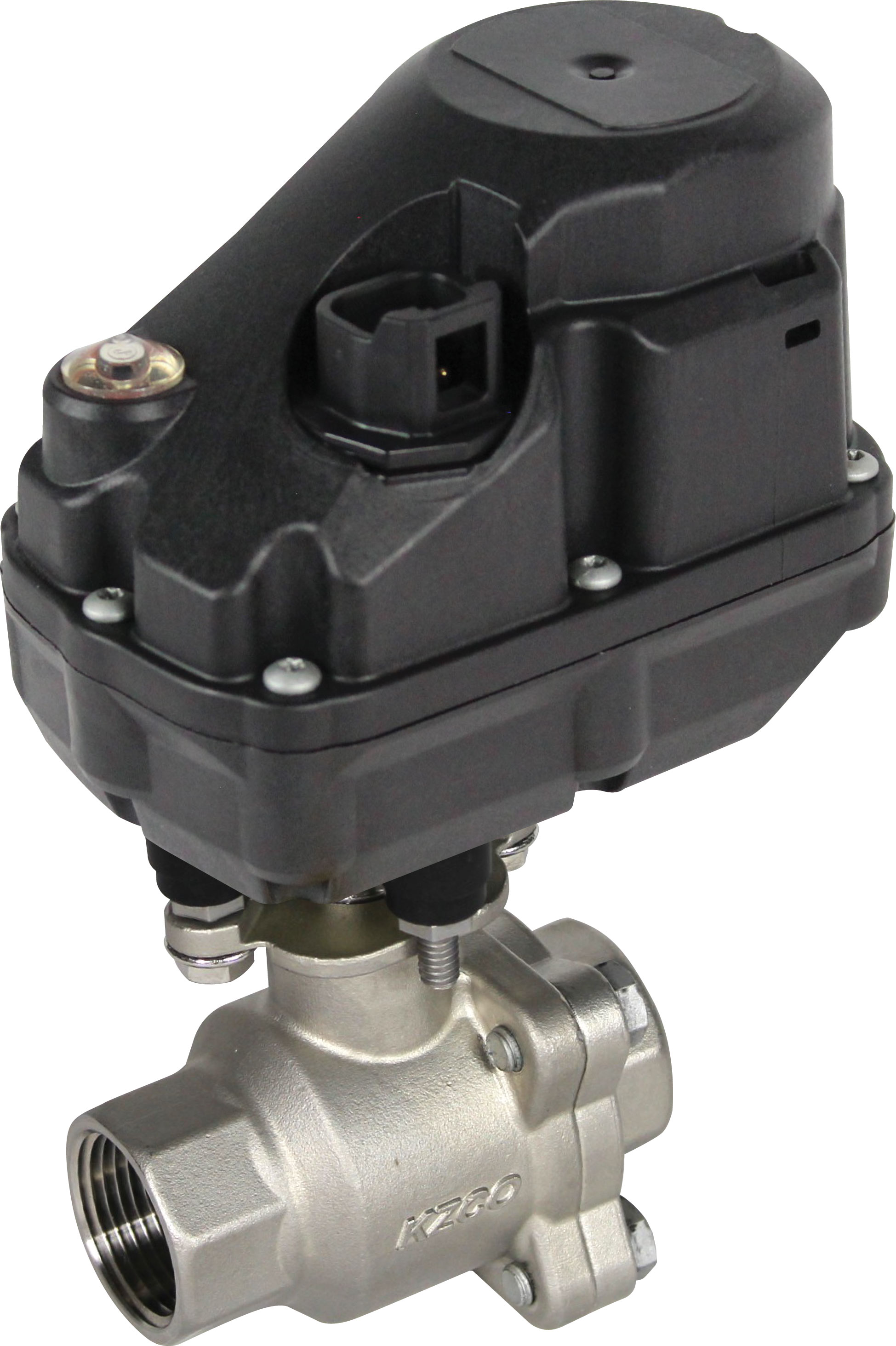

KZ 1" Ball Valve for NH3 Control, Stainless Ball with 12/24-Volt EH9 On-Off Actuator

1" FPT Ports, EH9 On-Off Actuator, 12/24 Volt, 0.7 Sec. Actuation Time, Direct Plug - 4-Pin Deutsch Receptacle Lid

KZValve’s 67 & S Series 12/24 Volt Vented Stainless Steel Ammonia Ball Valves are designed specifically for Anhydrous Ammonia applications and built to withstand the NH3 environment. Engineered for precision actuation, the 2-way ammonia valves feature stainless steel bodies, stems, and NH3 vented balls.

67 Series valves available in 1/4” full port models; S Series available in 1” full port. Maximum PSI at 70° is 2000 PSI for 1/4” – 3/4”, 1500 PSI for 1-1/2” and 2”, and 600 PSI for 1” (S series) valves. Actuators are waterproof rated (NEMA 6P) and ignition safe (NEMA 7D) for proven performance season after season. Wiring on all EH2 and EH9 actuators works with all computerized spray monitor consoles — allowing the valve to be turned On/Off via the monitor’s own switches. Stainless Steel Zip Valves feature 3/8” FPT standard ports and are rated to a maximum of 600 PSI.

NOTE: KZValve EH9 actuators are direct plug-in with 4-Pin Deutsch receptacle lids and therefore do NOT include pigtail or adapter wiring harnesses – must be purchased separately
