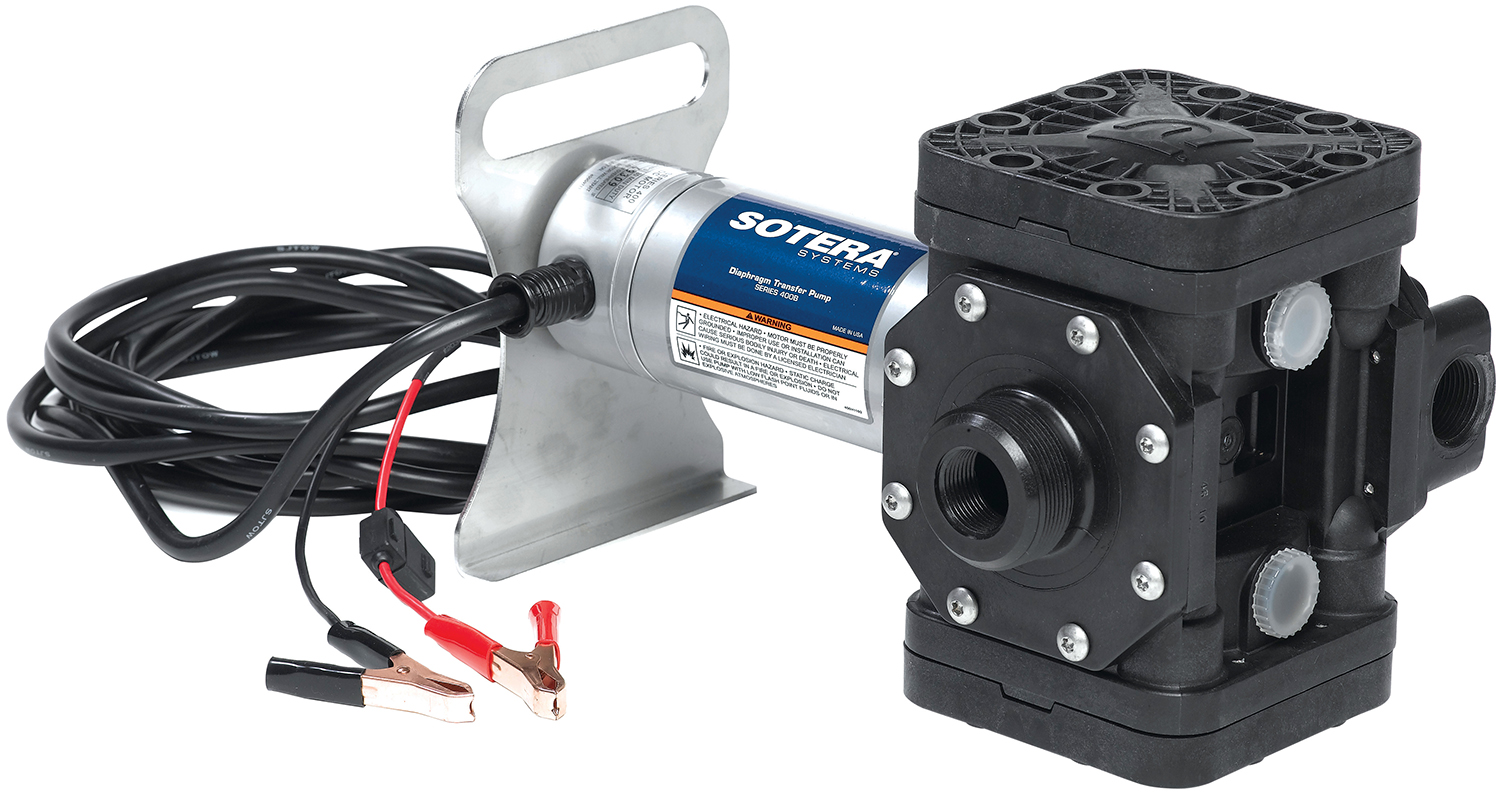

12 Volt Tote & Go Diaphragm Pump & Motor Unit, Less Plumbing, 12.0 Amp Draw

Use For: Agchemicals • Fertilizers • Seed Treatment Liquids • Propionic Acid (Hay Treatment) • Anti-Freeze • Motor Oil • Waste Oil (With Inlet Screen) • Hydraulic Fluid • Transmission Fluid • Soaps & Cleaning Fluids • Deicing Liquids

  • The motor support bracket allows the unit to set level on the ground or atop a mini-bulk tank.
  • Pumps thin liquids at 15 GPM (to 1.5 CPS) or thick liquids to 12 GPM (to 350 CPS).
  • Glass-filled polypropylene body, internals include polypropylene, fluorocarbon & stainless steel for maximum chemical resistance.
  • 2" Camlock inlet and 1" FPT outlet.


For pump unit with included plumbing kit, see item FR415X731PG.



Informational Sheet that Ships with this Pump

Manufacturer: Fill-Rite - Sotera
SKU: FR415X731
VIEW CATALOG PAGE E0273
$659.99 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Pump TypeDiaphragm
Body MaterialPolypropylene
Inlet Size2"
Outlet Size1"
Inlet ConnectionCamlock
Outlet ConnectionFPT
DriveElectric Motor
Motor HP0.25
Voltage12 Volt
Manufacturer Part NumberSS415BX731

Additional Information

The SOTERA 400 Series Diaphragm Pumps have proven to be a winner on all types of hard to handle agricultural chemicals. The double acting diaphragm design will work well with viscous, corrosive, encapsulated, suspension and shear sensitive products. These self priming pumps operate well on cold mornings and can even run dry without damage. These pumps have a 5-year Warranty. Working parts run in oil. Wetted parts are polypropylene, santoprene and stainless steel. The 1/4 HP motor will flow 13 GPM on 12-volt and 16 GPM on 110-volt models. Easily adapted to all mini-bulks with various adapters.
