3-Way 12 Volt DC Solenoid Valve, 3/4" NPT, 10 GPM at 5 PSI, Spade Terminal Connection

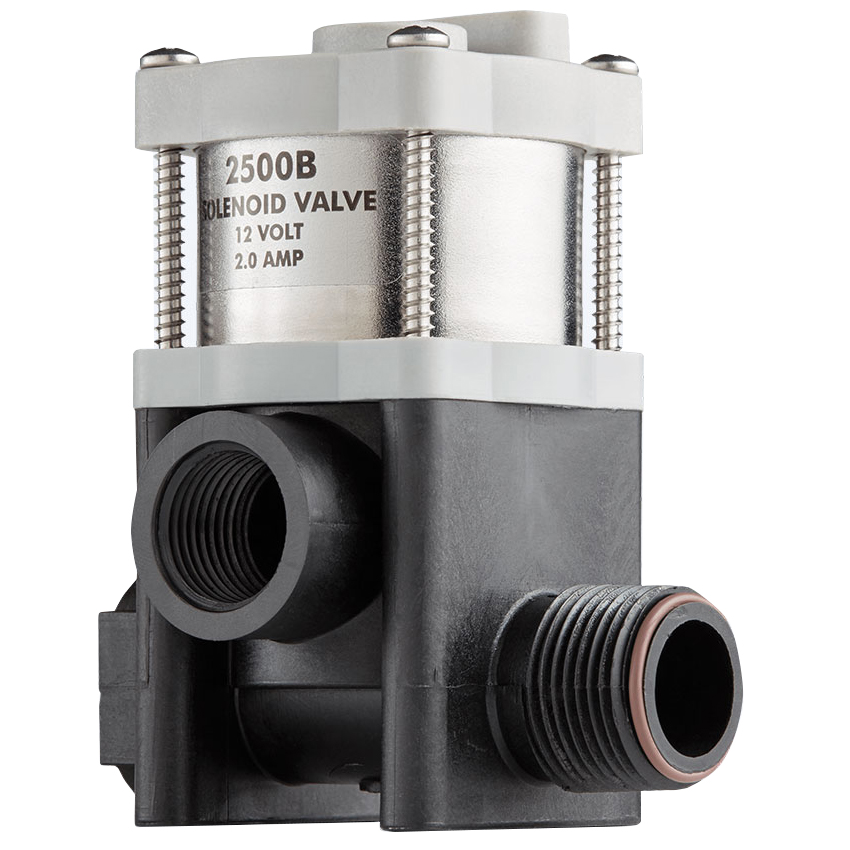

The 2500B 3-Way 12-Volt DC Boom Shutoff Solenoid Valve is a versatile solenoid valve featuring 3/4" FPT bypass inlet, 3/4" MPT bypass outlet, and 1/2" FPT boom outlet ports ideal for a variety of high flow agriculture spraying and ag chemical applications. The valve housing is made of glass-filled nylon and the wetted metal parts of 430 stainless steel. Viton® seals and O-rings are standard. The coils on these 3/4" 3-way solenoid boom valves are totally enclosed epoxy encapsulated with 1/4" male Spade sealed electrical connections. Only 2 amp draw per valve at 12 volts.

These direct operating 3-way solenoid valves can be used for spray booms, boom and nozzle control, chemical injection systems, individual nozzle shutoffs, fluid handling, and more! 2500B solenoid valves enable flow control of both air and liquids and can be banked together for multiple valve assemblies. Simply screw one valve to another.

Technical Specs:
  • Type: 3-Way Solenoid Valve
  • Style: Direct Acting
  • Port Size: 3/4" & 1/2"
  • Port Number: 3
  • Body Material: Glass-filled Nylon
  • Max GPM: 10 GPM (CV Rating of 4.5)
  • Flow Direction: 3-Way
  • Normally Open/Closed: Normally Closed
  • Operation: 12 Volt DC (2 Amps)
  • Actuation Type: Electric
  • Connection Type: 3/4" FPT Inlet; 3/4" MPT & 1/2" FPT Outlets
  • Max Working Pressure: 100 PSI
  • Max Temp Range: 32° – 150° F

Manufacturer: Texas Industrial Remcor
SKU: TX2500B-1
VIEW CATALOG PAGE E0388
$121.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Voltage 12 Volt DC
Manufacturer Part Number SV.2500B.1
