5CP5120 Plunger Pump, MAX 6.0 GPM, 2500 PSI, 1750 RPM

Flow: 6.0 GPM
Pressure Range: 2500 PSI
RPM: 1750 RPM
Inlet: 1/2"
Outlet: 3/8"
Shaft: 20 mm
Mounting Kit: 30611 (Mounting Rails Only)

Note: Mounting rails and mounting kits are not included and must be ordered separately).
Part No.CatalogSeriesPump TypeSeal MaterialInlet SizeOutlet SizeShaft SizeMax GPMMax PSIMax Temp (Deg. F)Price
Picture of Plunger Pump, High Pressure, High Temp., † 2.95 Flow, 2000 PSI, 190° F, 1725 RPM Brass Manifold
SKU: CC2SF29ELS3Catalog: E1458 Series: SuperflowPump Type:  Seal Material:  Inlet Size:  Outlet Size:  Shaft Size:  Max GPM:  Max PSI:  Max Temp (Deg. F):  Price: $680.00 / EA
i h
Picture of Plunger Pump, High Pressure, High Temp., † 3.0 Flow, 2000 PSI, 190° F, 3450 RPM, Brass Manifold
SKU: CC2SF30ES3Catalog: E1458 Series: SuperflowPump Type:  Seal Material:  Inlet Size:  Outlet Size:  Shaft Size:  Max GPM:  Max PSI:  Max Temp (Deg. F):  Price: $625.00 / EA
i h
Picture of Plunger Pump, High Pressure, High Temp., 4.2 Flow, 2000 PSI, 190° F, 1725 RPM, 316SS Manifold
SKU: CC3CP1221.3000Catalog: E1458 Series:  Pump Type:  Seal Material:  Inlet Size:  Outlet Size:  Shaft Size:  Max GPM:  Max PSI:  Max Temp (Deg. F):  Price: $2,184.00 / EA
i h
Picture of Plunger Pump, High Pressure, High Temp., 5.0 Flow, 2000 PSI, 190° F, 1725 RPM, Brass Manifold
SKU: CC5CP2150WCS3Catalog: E1458 Series:  Pump Type:  Seal Material:  Inlet Size:  Outlet Size:  Shaft Size:  Max GPM:  Max PSI:  Max Temp (Deg. F):  Price: $1,163.00 / EA
i h
Picture of Plunger Pump, High Pressure, High Temp., 5.0 Flow, 1500 PSI, 190° F, 1725 RPM, 316SS Manifold
SKU: CC351.3000Catalog: E1458 Series:  Pump Type:  Seal Material:  Inlet Size:  Outlet Size:  Shaft Size:  Max GPM:  Max PSI:  Max Temp (Deg. F):  Price: $4,168.00 / EA
i h
Picture of Plunger Pump: MAX 6.0 GPM, 2500 PSI, 1750 RPM, 1/2" Inlet, 3/8" Outlet, 20mm Shaft
SKU: CC5CP5120Catalog: E0030 Series:  Pump Type: PlungerSeal Material: BunaInlet Size: 1/2"Outlet Size: 3/8"Shaft Size: 20mmMax GPM: 6Max PSI: 2500Max Temp (Deg. F): 160Price: $1,031.00 / EA
i h
Picture of Plunger Pump, High Pressure, High Temp., 8.0 Flow, 2500 PSI, 190° F, 1725 RPM, Brass Manifold
SKU: CC56.3000Catalog: E1458 Series:  Pump Type:  Seal Material:  Inlet Size:  Outlet Size:  Shaft Size:  Max GPM:  Max PSI:  Max Temp (Deg. F):  Price: $2,168.00 / EA
i h

Additional Information

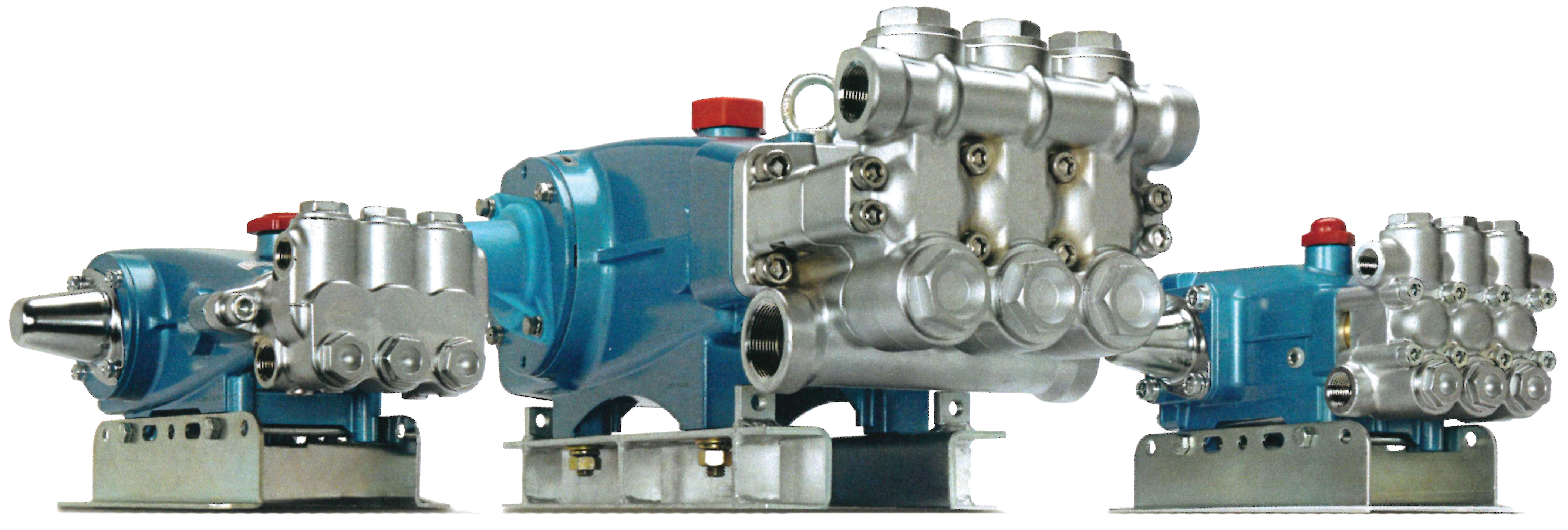

CAT PUMPS® TRIPLEX PLUNGER PUMPS are designed to deliver smooth, low pulsation flows at a wide variety of pressures and flow rates. Widely used in continuous-duty, high pressure applications including Car/Truck Wash, Industrial Cleaning, Pressure Washing, Reverse Osmosis, Water Misting and many more.

CAT PUMPS® are the "Pumps with Nine Lives". Standard Features Include: High pressure seals that are lubricated and cooled by the solution being pumped • Oil-bath crankcase • Heat treated valves and seats • Forged brass or stainless steel manifolds • Solid ceramic plungers • Exclusive high pressure seal design • Rated from 140° to 160° F. depending on the model. Seal options up to 180° F. available • Wet ends can be serviced without entering the crankcase • Pumps are rated to 50 micron particles and 5-9 ph.
