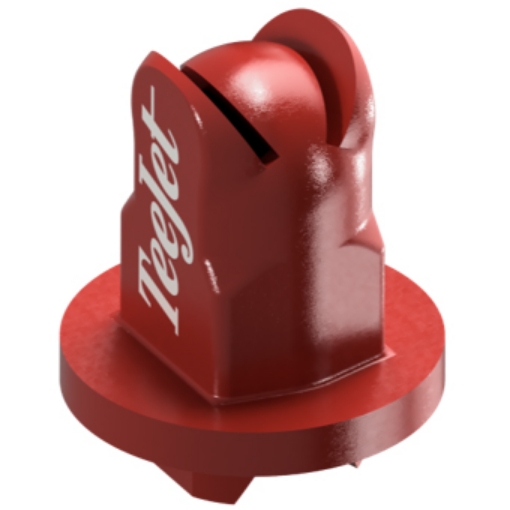

AccuPulse Twinjet Spray Tip, Acetal, Red

Designed Specifically for Use with PWM Sprayer Controls, Offering Maximum Drift Control

The AccuPulse uses a patent pending recirculating design, that allows this tip to produce highly drift resistant, XC and UC droplets without the use of air induction. This spray tip was designed specifically for use on sprayers equipped with Pulse Width Modulation (PWM) sprayer controls. The compact size and choice of numerous capacities will suite the needs of a wide range of application rates and sprayers. The droplet size spectrum and twin spray pattern of AccuPulse make it ideal for a variety of pre- and post-applications of systemic herbicides including glyphosate and dicamba.

Features:

• Specifically designed for use on sprayers equipped with Pulse Width Modulation (PWM) spray tip control, but also works with Non PWM sprayers where maximum drift control is desired.

• Wide operating pressure and 8 capacities to choose from, supports a wide range of ground speeds and application volumes. Suggested spray pressure range, 20-100 PSI.

• Patent-pending recirculating flow design results in excellent spray distribution quality and large droplets

• Twin spray pattern (110°) allows for improved coverage and canopy penetration. (30° Flanged & 30° Backward)

• Compact design.

• Acetal material for long wear and excellent chemical compatibility.

• Fits into standard flat spray cap - SS25611-X

Always double check your application rates. Tabulations are based on spraying water at 70° F. Drop size is in accordance with ISO 25358 Standard.

* Due to the unique design of APTJ, flow and application rate values on this chart are specific to APTJ and differ from other flat spray rate charts
