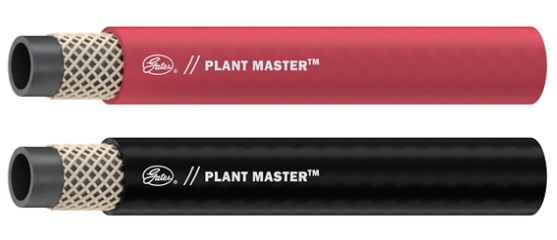

Adaptaflex Hose, Gates Plant Master Hose

Gates Red EPDM General Purpose Hose is a premium grade hose for use with air, water, and agricultural chemicals. Made with high-grade EPDM rubber, this Adaptaflex hose features a 2-piece design with an EPDM tube and cover for long-lasting performance and maximum flexibility. The red or black EPDM cover features excellent abrasion and weather resistance, allowing this general-purpose air and water hose to be used for a wide variety of applications including mining, construction, agriculture, vehicle repair, and in-plant operations.

Hoses are not recommended for oils. For oil transfer hose, use 3205R Gates Premoflex.

*Certain hose sizes available in UPSable packages on reels. Cut lengths sold in 5' increments only.


Standard Features:
  • High-grade 2-piece EPDM construction
  • Red EPDM cover (select sizes black)
  • High-tensile synthetic cord reinforcement
  • Excellent abrasion and weather resistance
  • Lightweight and flexible



Technical Specs:
  • Tube Material: EPDM
  • Cover Material: EPDM
  • I.D.: 3/8 In. – 2 In.
  • O.D.: 0.66 In. – 2.56 In.
  • Length: 5 Ft. – 100 Ft.
  • Bend Radius: 2.5" (3/8" hose) to 11" (2" hose)
  • Min Temp: -40° F
  • Max Temp: 200° F
  • Assembly or Bulk: Bulk


Note:

These package sizes are UPSable & Sold In Reels Only: GA1B-1/2x2, GA1B-3/4x2, GA1B-1x2

Also UPSable: GA1B-3/8x2, GA1B-5/8x2

2" Black Hose can be branded as Plant Master or Dura Master. 2" Size is Much Stiffer.

25% Discount if ordered in Standard Pack Reels. Reel lengths are approximate and may vary. Non continuous lengths, may be up to 3 lengths per reel with no size less than 50 Ft.

Manufacturer: Gates Hose - Industrial
Part No.CatalogTube MaterialHose I.D.Hose O.D.Hose Reel CapacityMax PSIMax Temp (Deg. F)ColorApplicationPrice
Picture of Adaptaflex Hose, 3/8" Hose I.D., 0.66" O.D., 400' Reel Size (UPSable), 200 PSI Working Pressure, RED, Sold Per Foot
SKU: GA1B-3/8X2Catalog: E0847 Tube Material: EPDMHose I.D.: 0.375"Hose O.D.: 0.66"Hose Reel Capacity: 400'Max PSI: 200Max Temp (Deg. F): 150Color: RedApplication: General PurposePrice:
Save!
  • 25% on 400 (FT)
$1.90 / FT
i h
Picture of Adaptaflex Hose, 5/8" Hose I.D., 0.97" O.D., 250' Reel Size (UPSable), 200 PSI Working Pressure, RED, Sold Per Foot
SKU: GA1B-5/8X2Catalog: E0847 Tube Material: EPDMHose I.D.: 0.625"Hose O.D.: 0.97"Hose Reel Capacity: 250'Max PSI: 200Max Temp (Deg. F): 150Color: RedApplication: General PurposePrice:
Save!
  • 25% on 250 (FT)
$3.80 / FT
i h
Picture of Adaptaflex Hose, 1/2" Hose I.D., 0.81" O.D., 500' - 700' Reel Size, 200 PSI Working Pressure, RED, Sold Per Foot
SKU: GA3204-1328Catalog: E0847 Tube Material: EPDMHose I.D.: 0.5"Hose O.D.: 0.81"Hose Reel Capacity: 500'Max PSI: 200Max Temp (Deg. F): 150Color: RedApplication: General PurposePrice:
Save!
  • 25% on 500 (FT)
$2.10 / FT
i h
Picture of Adaptaflex Hose, 3/4" Hose I.D., 1.11" O.D., 500' - 700' Reel Size, 200 PSI Working Pressure, RED, Sold Per Foot
SKU: GA3204-1346Catalog: E0847 Tube Material: EPDMHose I.D.: 0.75"Hose O.D.: 1.11"Hose Reel Capacity: 500'Max PSI: 200Max Temp (Deg. F): 150Color: RedApplication: General PurposePrice:
Save!
  • 25% on 500 (FT)
$2.80 / FT
i h
Picture of Adaptaflex Hose, 1" Hose I.D., 1.40" O.D., 400' Reel Size, 200 PSI Working Pressure, RED, Sold Per Foot
SKU: GA3204-1361Catalog: E0847 Tube Material: EPDMHose I.D.: 1"Hose O.D.: 1.4"Hose Reel Capacity: 400'Max PSI: 200Max Temp (Deg. F): 150Color: RedApplication: General PurposePrice:
Save!
  • 25% on 400 (FT)
$5.00 / FT
i h
Picture of Adaptaflex Hose, 2" Hose I.D., 2.56" O.D., 100' Reel Size, 200 PSI Working Pressure, RED, Sold Per Foot
SKU: GA6B-2Catalog: E0847 Tube Material: EPDMHose I.D.: 2"Hose O.D.: 2.56"Hose Reel Capacity: 100'Max PSI: 200Max Temp (Deg. F): 150Color: RedApplication: General PurposePrice:
Save!
  • 25% on 100 (FT)
$9.60 / FT
i h
Picture of Adaptaflex Hose, 1-1/4" Hose I.D., 1.73" O.D., 200' Reel Size, 250 PSI Working Pressure, BLACK, Sold Per Foot
SKU: GA1B-1-1/4X2Catalog: E0847 Tube Material: EPDMHose I.D.: 1.25"Hose O.D.: 1.73"Hose Reel Capacity: 200'Max PSI: 200Max Temp (Deg. F): 150Color: BlackApplication: General PurposePrice:
Save!
  • 25% on 200 (FT)
$6.00 / FT
i h
Picture of Adaptaflex Hose, 1-1/2" Hose I.D., 1.98" O.D., 200' Reel Size, 200 PSI Working Pressure, BLACK, Sold Per Foot
SKU: GA1B-1-1/2X2Catalog: E0847 Tube Material: EPDMHose I.D.: 1.5"Hose O.D.: 1.98"Hose Reel Capacity: 200'Max PSI: 200Max Temp (Deg. F): 150Color: BlackApplication: General PurposePrice:
Save!
  • 25% on 200 (FT)
$8.60 / FT
i h
Picture of Adaptaflex Hose, 2" Hose I.D., 2.56" O.D., 100' Reel Size, 200 PSI Working Pressure, BLACK, Sold Per Foot
SKU: GA1B-2X2Catalog: E0847 Tube Material:  Hose I.D.:  Hose O.D.:  Hose Reel Capacity:  Max PSI:  Max Temp (Deg. F):  Color:  Application:  Price:
Save!
  • 25% on 100 (FT)
$10.30 / FT
i h
Picture of Adaptaflex Hose, 1/2" Hose I.D., 0.81" O.D., 250' Reel Size (UPSable), 250 PSI Working Pressure, RED, Sold Per Reel
SKU: GA1B-1/2X2Catalog: E0847 Tube Material: EPDMHose I.D.: 0.5"Hose O.D.: 0.81"Hose Reel Capacity: 250'Max PSI: 200Max Temp (Deg. F): 150Color: RedApplication: General PurposePrice: $425.00 / RL
i h
Picture of Adaptaflex Hose, 3/4" Hose I.D., 1.11" O.D., 200' Reel Size (UPSable), 200 PSI Working Pressure, RED, Sold Per Reel
SKU: GA1B-3/4X2Catalog: E0847 Tube Material: EPDMHose I.D.: 0.75"Hose O.D.: 1.11"Hose Reel Capacity: 200'Max PSI: 200Max Temp (Deg. F): 150Color: RedApplication: General PurposePrice: $500.00 / RL
i h
Picture of Adaptaflex Hose, 1" Hose I.D., 1.40" O.D., 125' Reel Size (UPSable), 125 PSI Working Pressure, RED, Sold Per Reel
SKU: GA1B-1X2Catalog: E0847 Tube Material: EPDMHose I.D.: 1"Hose O.D.: 1.4"Hose Reel Capacity: 125'Max PSI: 200Max Temp (Deg. F): 150Color: RedApplication: General PurposePrice: $500.00 / RL
i h
