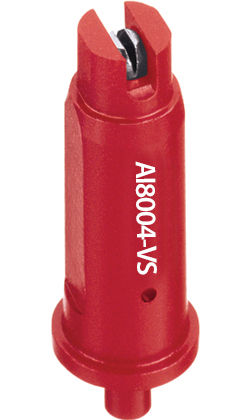

AI Air Induction Flat Spray Tip Nozzle Only, Polymer, 80°, .04 Orifice, Red, Stainless Insert

50 Mesh Screen Recommended but not Included

This aspirating nozzle will do an excellent job of reducing drift on broadcast applications. Fluid flow pulls air into the nozzle through the air induction ports where it mixes with the spray fluid in a mixing chamber. The result is air filled droplets that are larger than normal, which are less subject to drift. As these drops burst on the target they explode on impact into many small droplets providing good coverage and penetration. Pressure Range is 30 - 115 PSI.

For pre emerge herbicides minimum pressure is 40 psi, for posting chemicals use 80 psi or higher.

VS Models feature a color coded polymer body with Stainless tip Insert and have a tapered edge flat spray pattern. Has EPDM gasket.

Use with CP25597 quickjet caps. (See related items.)

Manufacturer: TeeJet / Spraying Systems
SKU: SSAI8004VS
$12.94 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Tip Material Stainless Steel
Body Material Polymer
Orifice Size .04
Max PSI 115
Color Red
Spray Angle 80 Deg
Series AI
Spray Pattern Flat
Manufacturer Part Number AI8004VS
