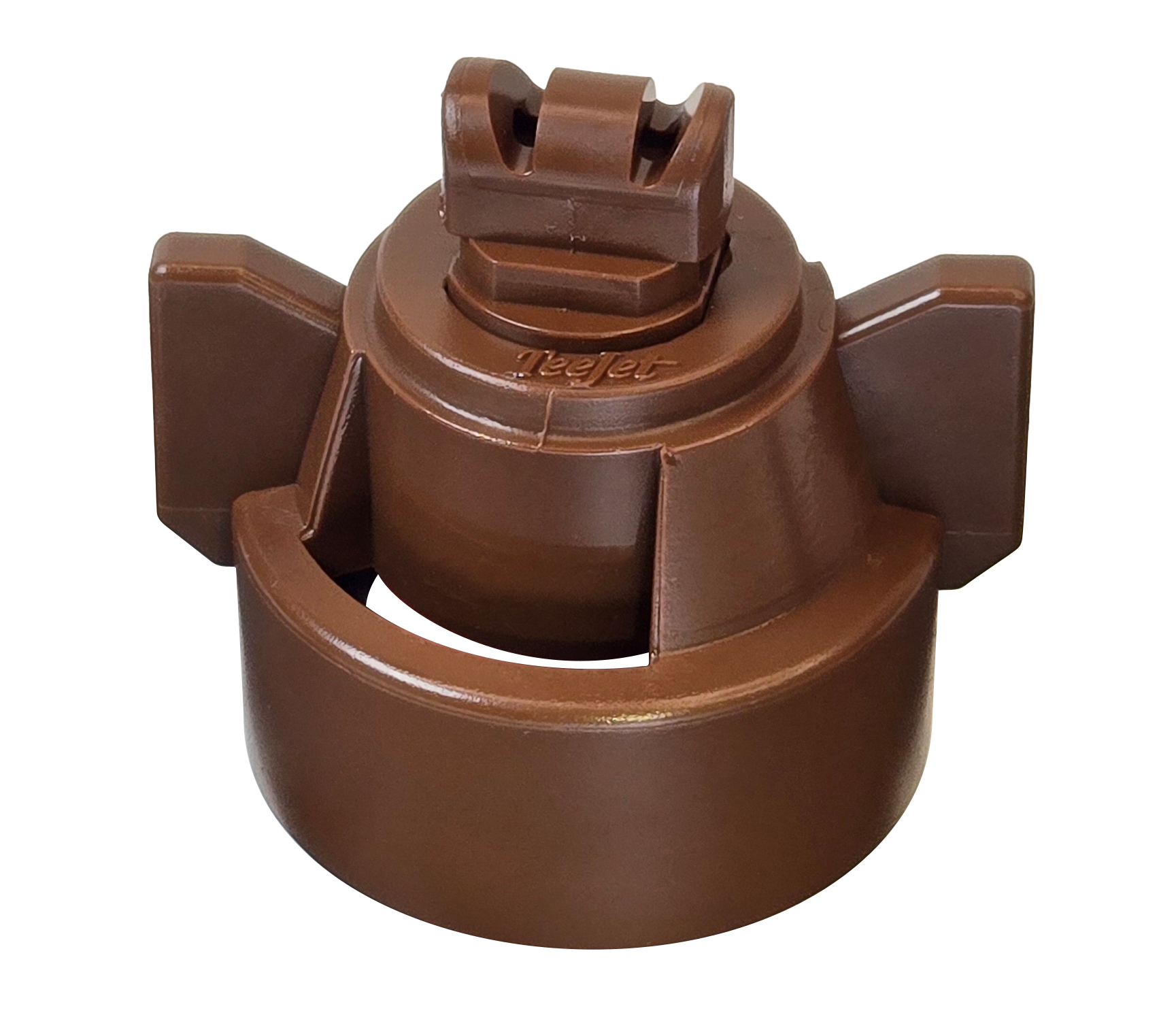

Air Induction Turbo TwinJet Nozzle Assembly with Tip, Cap and EPDM Gasket, Polymer, 110°, .05 Orifice, Brown

50 Mesh Strainer Recommended (Not Included) • VisiFlo® Color Coding

Typical Applications:

• Excellent for more intensive penetration of thick foliage & achieving high rates of coverage with fungicides, insecticides or contact herbicides.
• Two spray patterns spraying 60° apart, one in the forward direction of travel; one in the rear.
• Good lateral coverage on vertical target areas.
• Sizes available to meet a wide range of speeds & application rates.

Features:

• Air Induction with dual 110° flat fan patterns.
• 60° between leading & trailing spray patterns.
• Good coverage with increased canopy penetration & best drift control.
• Best suited for post emergence applications.
• Excellent drift control with coarse to very coarse droplets.
• Available in (9) VisiFlo® color coded capacities - color represents total flow.
• Pressure ranges from 20 to 90 PSI.
• All sizes suitable with PWM Spray Systems.

Click here to see Chart for Specifications & Tip Number.

Larger Coarse Droplets Provide Best Drift Control.
