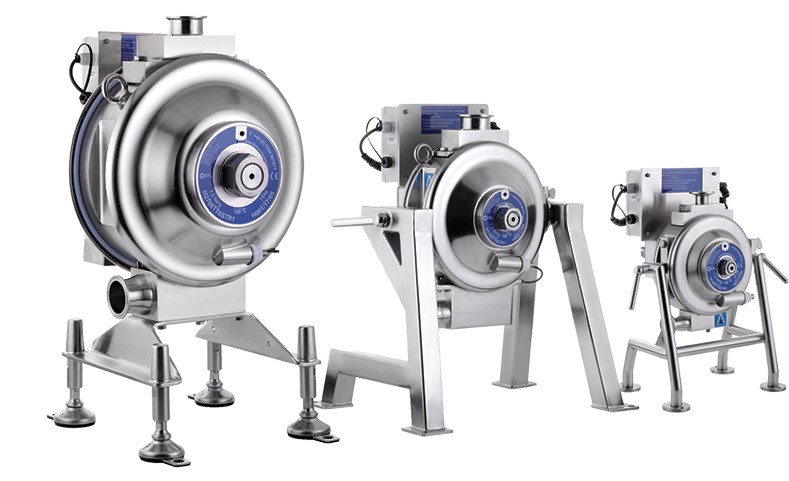

Air Operated Diaphragm Pumps, Flotronic®

The unique ‘One-Nut™’ design for this product family of Air Operated Double Diaphragm (AODD) pumps has a laundry list of benefits. Not only is the design space-saving, but it also delivers a more efficient pumping solution. The pioneering design offers quick and efficient disassembly without disconnecting the pump from the process piping. Additionally, the air valve block is a modular design that can be replaced by removing four bolts.

Wide variety of process applications for varying degrees of viscosity. Pumps will stall under dead-head scenario just like a traditional AODD design. The One-Nut™ Pump line from Flotronic® can pump chemicals, adhesives, cosmetics, drinks, dyes, foodstuff, paints, pharmaceuticals, and solvents. The product line has proven itself amongst some of the toughest industrial acids, hand creams, and various food products.

Key Features:

• Media transfers directly through the center of the pump between both diaphragms – driving better efficiency
• Divider seals can be removed in 30 seconds for easy/quick cleaning
• All external surfaces are either PTFE or Stainless Steel for easy cleaning
• Clean in Place (CIP)
• Self-Priming to 12ft (dry) and 26ft (wet)
• Solids up to 1”
• Run-dry capability
• 15 minute strip down & rebuild by hand
• FDA and 3A compliant product offerings

Technical Data:

• Max Flow Rate: 200GPM
• Max Pressure: 100PSI
• Metallurgy: 316L SS Bodies
• Variety of Diaphragm Materials Available
