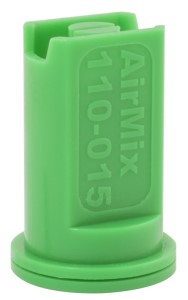

AirMix® Low Pressure Venturi Spray Tip Nozzle, 110°, .015 Orifice

AM Low Pressure AirMix® Venturi Nozzle, 110° Flat Fan. Economical air injection nozzle for excellent drift control at conventional pressures.

15-90 psi Overall pressure range
20-60 psi Optimal Pressure Range
15-20,000 acres estimated life (60' boom, 20" centers)
Suggested Spray Height: 16" to 36" (on 20" centers)

Two piece, polyacetal construction. No tools required for disassembling. Fits standard caps.

AirMix® Nozzles are a compact, two-piece air injection nozzle that fits in a standard cap, and can be cleaned without tools. The AirMix® utilizes a unique air cleaning system to prevent nozzle plugging. Please target 40 PSI when selecting nozzle size, to allow for changes in speed. Higher Pressures are recommended for penetrating dense canopies and for coverage critical contact chemicals. For single tip application see cap GTAMTG and gasket GT125.
Manufacturer: Greenleaf Nozzles
SKU: GTAM110015
Add to cart to see price
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Body MaterialPolyacetal
Orifice Size.015
Max PSI90
ColorGreen
Spray Angle110 Deg
SeriesAirMix Low Pressure - AM
Spray PatternFlat
Manufacturer Part NumberAM110015
