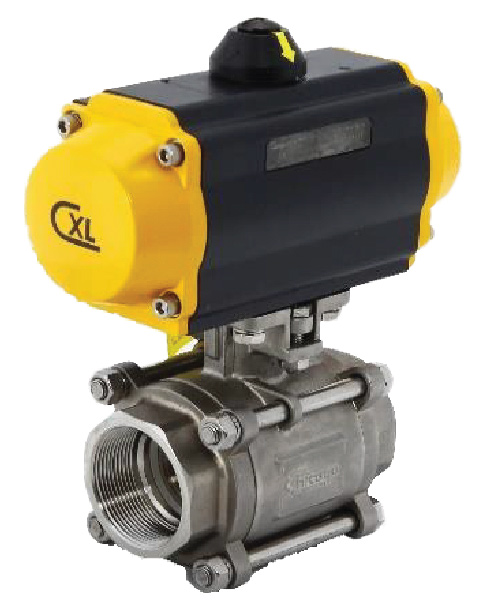

Ball Valve, 2", 316 Stainless Steel, FPT Ends, Full Port, RTFE Seats, PTFE Body Seals, 1000 Maximum Working Pressure, 3 Piece, Double Acting Air/Pneumatic Actuator XL075DA

The Series 35 from Chicago Valves is a versatile Direct Mount, Full Port Ball Valve line. In this package, the ball valve is paired with a Direct Mount Pneumatic Actuator. This ball valve line boasts an elevated mounting pad that allows for adjustment of the packing gland flange while the valve is in service – without removing the actuator. The 35 Series ball valve package is sized for a wide range of media viscosities and allows for remote actuation of the valve through pneumatic airlines. Air pressure to open/Air pressure to close. Actuator sizing is based on 80PSI supply pressure.

Technical Specifications:

• 3-Piece, Full Port Design for Easy Maintenance
• 316 Stainless Steel Body
• RTFE Seats & PTFE Body Seals
• Pressure Rating: 1000PSI WOG (1/4” – 2”) / 800PSI WOG (2-1/2” - 4”)
• Temp Range: -50° F to 450° F
• Vacuum Rating up to 29” Hg
• FPT Ports – Other configurations Available (Socket Weld or Butt Weld)
• Anti-static design
• Series XL Double Acting Pneumatic Actuator or Spring Return Actuator
