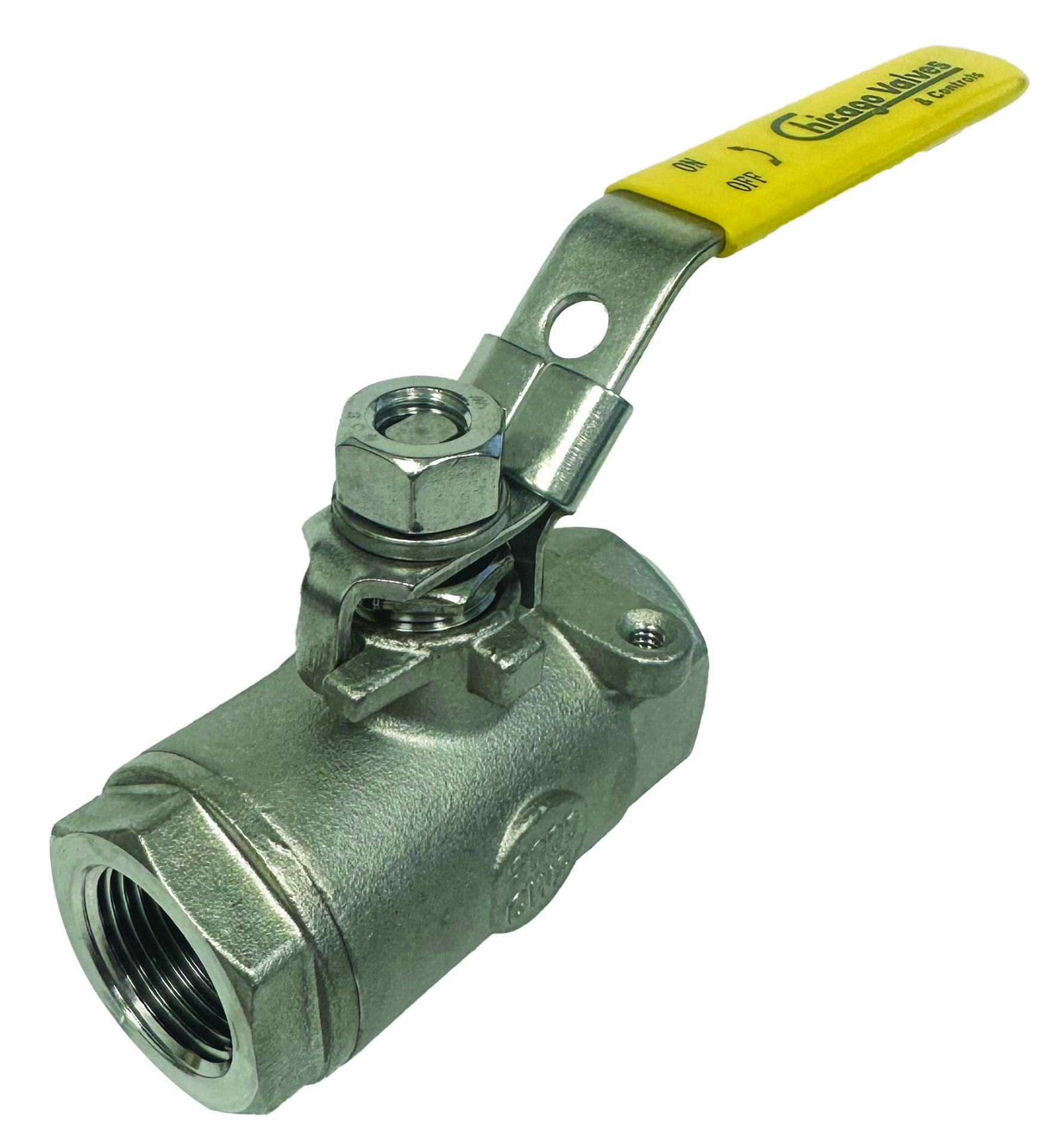

Ball Valve, High Pressure Stainless, 1/2" FPT Ports, 2000 Max PSI

Standard Port

316 Stainless Steel Ball Valves (ASTM A351 CF8M) rated to 2000 PSI W.O.G. Two-Piece, construction. Locking handle. PTFE seats and stem seal. Maximum temperatures to 425 Deg. F. (Maximum 150 psi for use with steam).

Manufacturer: Chicago Valves
SKU: GN2P282
VIEW CATALOG PAGE E0327
Save!
  • 10% on 10 (EA)
  • 15% on 50 (EA)
  • 20% on 100 (EA)
$30.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Flow Style Standard Port
Body Material 316 Stainless Steel
Port Size A 1/2"
Port Size B 1/2"
Port Type A FPT
Port Type B FPT
Max PSI 2000
Seat PTFE
Manufacturer Part Number 2466R005
