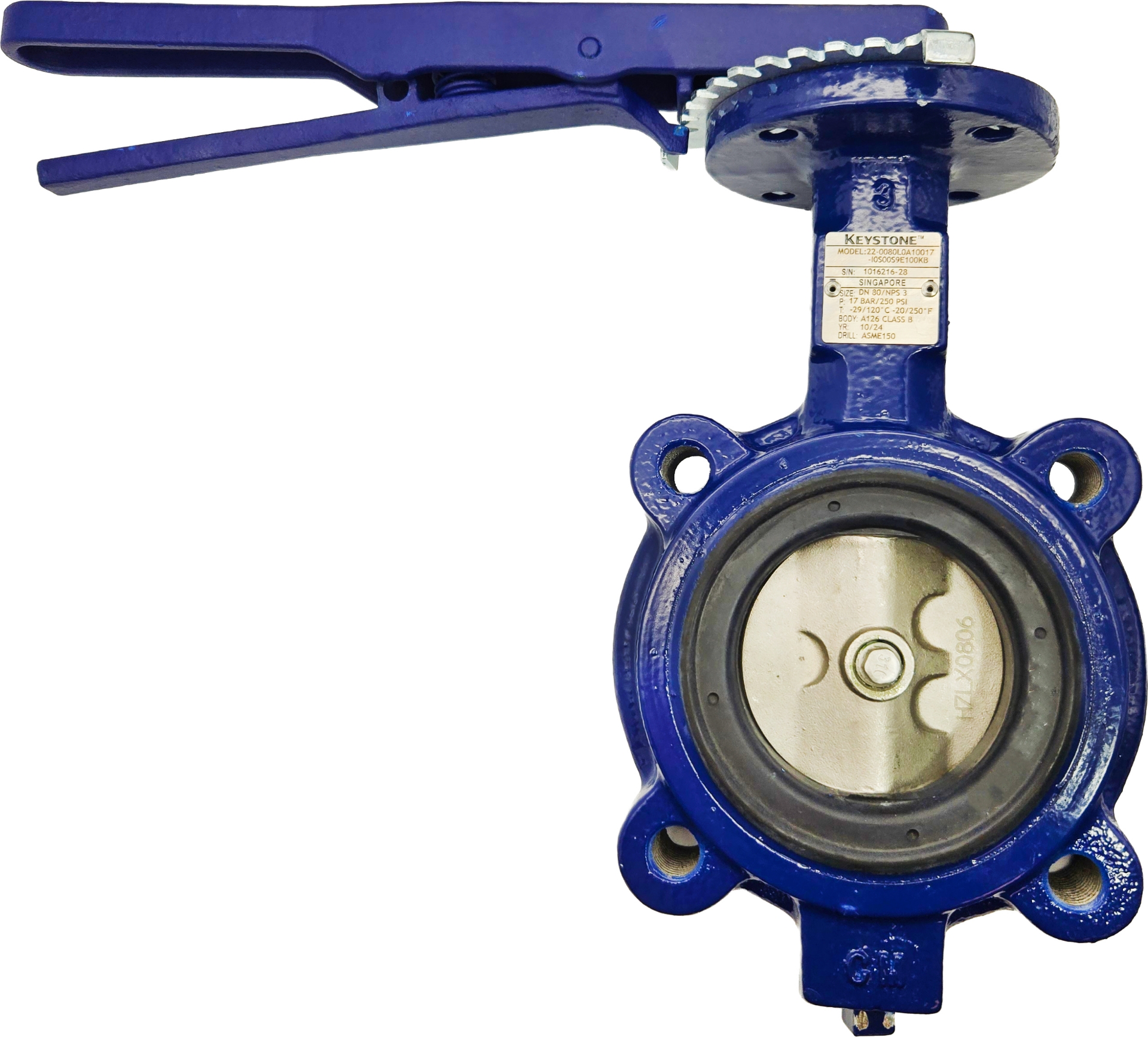

Butterfly Valve, Lug Style, 222 Series, 3" Size

Keystone 222 series “Lug” Style Butterfly Valves offer the same great features and construction as the Series 221 Wafer Style above, except the “Lug” Style bodies are drilled and tapped. This allows for the isolation and removal of downstream piping at full-rated pressure (up to 250 PSI). The valve features EPDM seats (Buna is also available with 304 SS discs) and locking handles with a 10-position notched plate.

The Keystone 221 series butterfly valve features a bonded seat that fully isolates all valve body components from the liquid, ensuring reliable protection. Its rounded, polished disc and hub are designed to achieve precise concentric seating without interfering with the seat, which helps maximize the seat’s lifespan. This design provides a bubble-tight shut-off. The body of the valve offers locating holes to easily install and center the valve between 150 lb. flanges.



Note: These valves have a molded-in resilient non-replaceable seat; suitable for full vacuum applications.

Stem: 416 Stainless Steel
Disc: 316 Stainless Steel
Body: Cast Iron
Seat: EPDM
W.P. Rating: 250 PSI

Standards: API609, ASME B16.34

The EPDM seats used in these valves are not suit­able for use with Diesel Fuel.

SKU: KE222-3LUG
VIEW CATALOG PAGE E1204
Save!
  • 5% on 5 (EA)
$192.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
StyleLug
Body MaterialCast Iron
Port Size A3"
Max PSI250
Vacuum Rating (inches HG)30"
Series222
Manufacturer Part Number22-0080L0A10017-I0S00S9E100KB+HS-12
