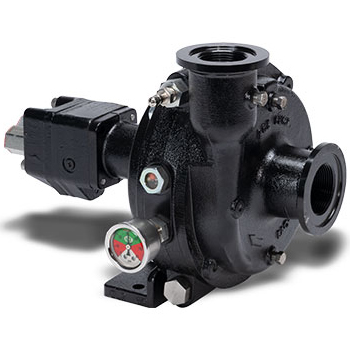

Centrifugal Pump, E-Coated Cast Iron with 7 GPM Hydraulic Motor Drive (206), Inlet is 220 Full Port Flange & 1-1/2" FPT; Outlet is 200 Std. Port Flange & 1-1/4" FPT, Max Flow 145 GPM, 120 Max PSI, Oasis Double Wet Seal

With Oasis™ Wet Seal

Ace's 155 PRO 5 Series Pumps are engineered with advanced features for improved reliability, enhanced performance, and added protection against costly downtime. Designed with high-efficiency, close-coupled hydraulic motors. Cast iron construction with black E-coating (epoxy) for added corrosion resistance. Also feature larger bearings for increased pump longevity and a greater number of interchangeable components. Pulse width modulation (PWM) control valve options available on 206 & 304 sizes.

FMCWS Models incorporate Ace Pump's Oasis™ Double Wet Seal technology to isolate seals from abrasive/corrosive materials & prevent run-dry failure of any length.

Features:

• Type: Centrifugal
• Pump Body Material: Epoxy-coated Cast Iron
• Inlet Size/Type: 220 Full Port Flange & 1-1/2" FPT
• Outlet Size/Type: 200 Std. Port Flange & 1-1/4" FPT
• Max GPM: 145 GPM
• Max PSI: 120 PSI
• Seal Material: Carbon Ceramic/FKM
• Impeller Diameter: 5.69"
• Shaft Type: Solid
• Shaft Size (OD Diam): 5/8"
• Drive Type: Hydraulic Motor
• Max RPM: 5,100 RPM
