Chemical Flow Meter, 2" Dura Meter, Viton® Seals

Dura-Meter™ is a top solution for accurate measurement for agriculture and industrial applications. Ideal for metering herbicides, insecticides, fungicides, fertilizers, and a wide variety of other chemicals.

Reliable Chemical Meters

Dura chemical meters are built with 100% moisture-sealed circuitry making them impervious to water intrusion. They boast an extremely tough and impact-resistant Lexan faceplate that is also over-molded with Santoprene for chemical resistance and gel-filled for improved shock resistance.

Dura meters are available in three sizes—1-inch, 2-inch, and 3-inch—allowing you to measure flow rates ranging from 2 to 700 gallons per minute (see below for the specific flow rates of each size). See all of the available Dura Meter options in the additional info below.

Dura Meter Features:

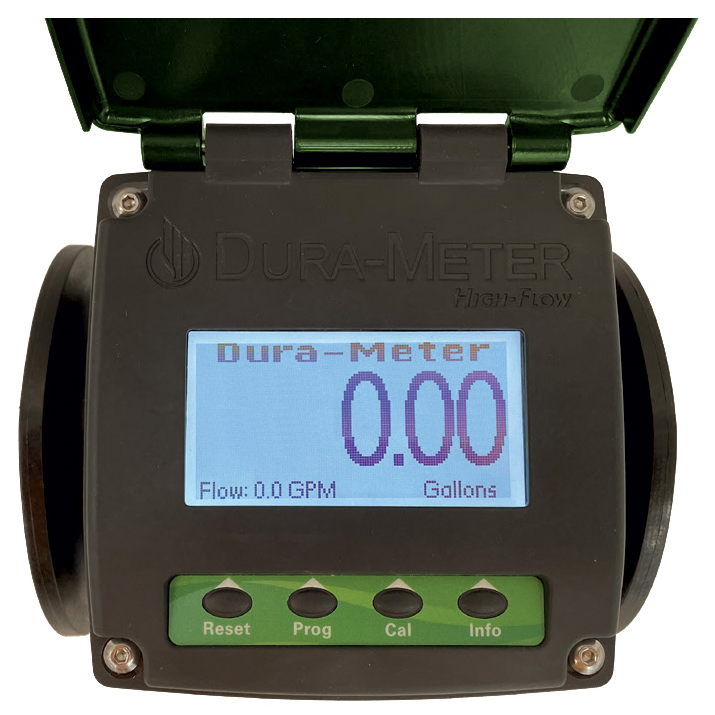

• Large 2" tall backlit display with 3/4"+ letters for current flow total
• Displays show the Current Total, Batch Total, and Totalizer (all resettable); Gallons, Liters, or Ounces
• Power consumption % remaining (battery strength) also shown on display; runs on (4) AAA batteries for long battery life (3" Models use (2) 9-volt batteries)
• Can store (5) different calibration factors and also includes a "Quick List" of some common products
• Unique meter design allows for both inline and 90° (back mount for 1" size) applications
• Flow Rate: 2-22 GPM (2": 40-300 GPM; 3": 80-700 GPM); Accuracy: 0.5%; Maximum Pressure: 40 PSI (150 PSI on 3"); Operating Temperatures: -10° to +130° F.
• 1" FPT ports on the DP3000 series, 2-inch full port (M220) Banjo manifold flanges on DPHFM2 meters, and 3-inch Banjo flanges on the DPHFM3 meters.
• Wetted materials for corrosion resistance: GF Polypropylene, 304SS; EPDM, Viton® or Silicon seals
• Backed by 2-Year Warranty and Maintenance Program (see more below)

Note: The 3" Model has a replaceable paddle wheel

* Use Silicon Seals for Resicor®, Instinet® Keystone, Surpass, etc. Refer to the full compatibility guide for other common herbicides and chemicals.
