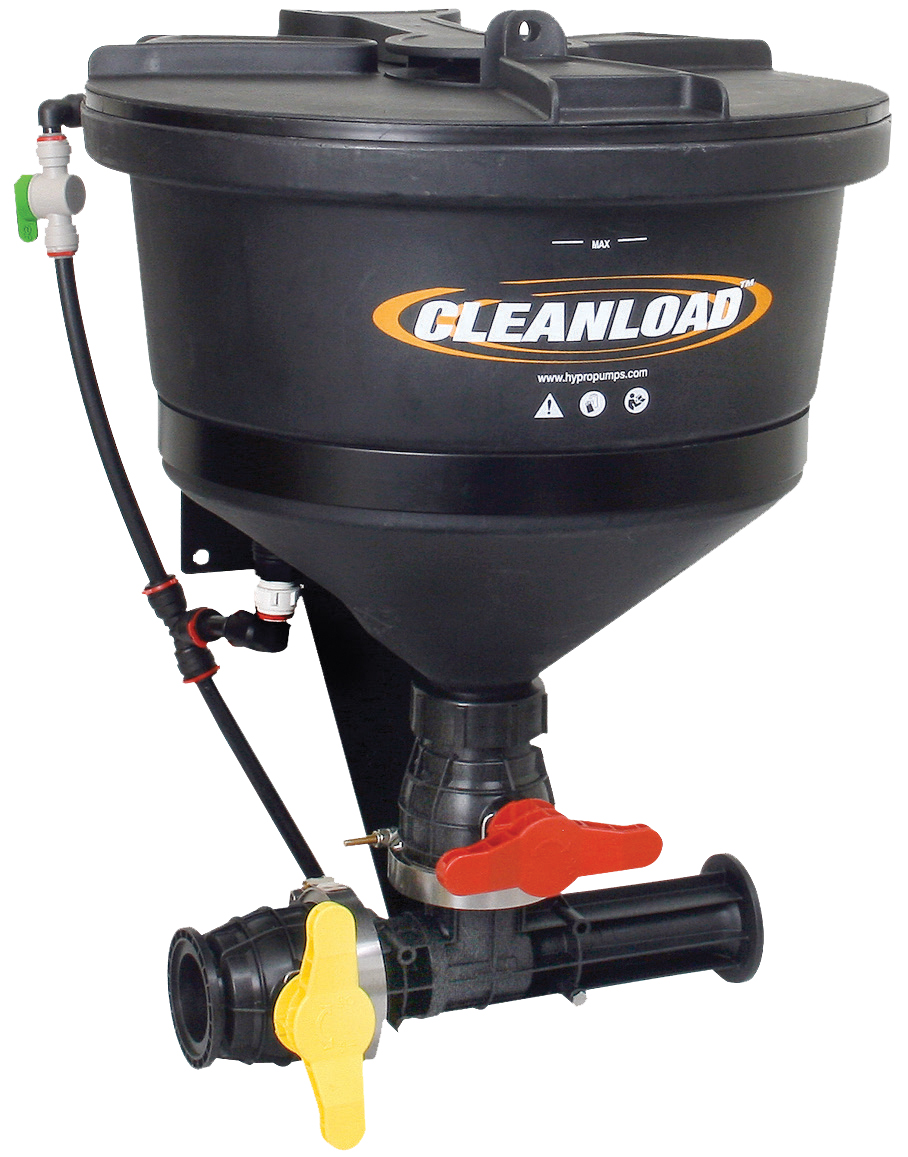

Cleanload™ Chemical Eductor with 7 Gallon Tank, High Pressure, High Flow, Right Hand

For Safe Loading of Chemicals into Spray Tanks

Features:

• Self-Contained Eduction System, which allows the use of one system to mix liquid and dry chemicals.
• 7.0 Gallon tank features a wide 16" lid, holds a full 51 lb. bag of dry material, and can be used to rinse larger 5.2 gallon jugs.
• Educts 7 gallons of liquid in 10 seconds and a 51 lb. bag of AMS in 30 seconds.
• CycloRinse™ System provides premium cleaning & meltdown of flowable powders with lid open for continuous fill operation.
• Available in (3) Nozzle sizes designed for transfer pump, on-board sprayer and low flow roller/diaphragm applications.
• Polypropylene Eductor features 220 universal flange ports and is available in either left-hand or right-hand flow configurations (Right-hand flow is illustrated. Left-hand models available).
• Extends the life of transfer pumps by educting abrasive and corrosive chemicals downstream.
• Bottle Rinse is included.

Part Number HY3376-1170
Application: On-Board Sprayer Pump
Description: High Pressure / High Flow
Nozzle Size: 11
