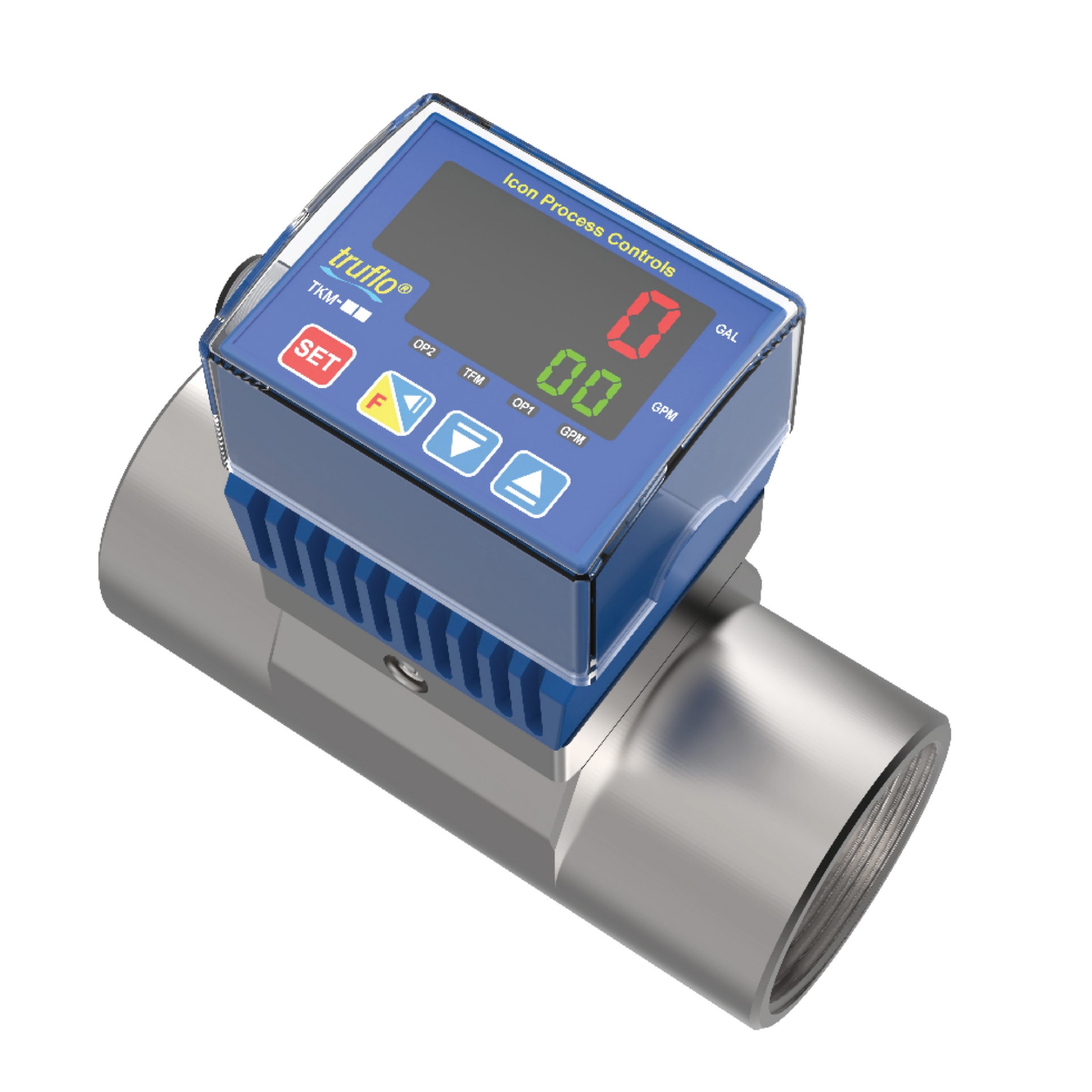

Digital Flow Meters, Paddle Wheel, Truflo TK3M Series, Local LED Display

This in-line paddle wheel meter from Icon Process Controls boasts 316SS body with Tefzel® and zirconium ceramic internals which allow for the product line to be used in some seriously corrosive applications. The TK3M Paddle Wheel Series is extremely easy to install and comes with guaranteed long-life performance.

The ShearPro® paddle design allows for 78% less drag than the traditional flat paddle wheel design. Sizes available from ¼” to 4” NPS. Digital display or blind display options available. All models ship completely pre-programmed. Display can rotate 360°. Bright LED Display is visible in low-light conditions. Icon Process Controls recommends Straight Pipe Length of 10X pipe diameter before meter and 3X pipe diameter after meter.  For example, if pipe inside diameter is 3”, then it is recommended to have at least 30” of straight pipe before the meter and 9” of straight pipe after the meter.  Meters come standard with 6 Pin Cable (6ft).

• FKM Orings Standard – EPDM Available
• 4-20mA and Pulse Output Options – Pulse is Standard
• Accuracy: .5%±
• Flow Range: 1 – 1149 GPM
• RoHS Compliant
• NEMA 4X/IP66 Protection
• Reduced Turbulence = Reduced Wear = Longer Life
• Lifetime Warranty
