Electronic Flow Monitoring System, Core Kit, 12 Row, New Install

Designed for AgChemical & Liquid Applications

The Wilger Electronic Flowmeter (EFM) is a fully serviceable electronic flowmeter & monitoring system specifically designed for agricultural chemical & liquid applications. Like visual ball flow indicators, the EFM system monitors variations in flow rate but has patented electronic flowmeters that feature stabilizing jets for improved flow rate accuracy and consistency across a broad flow range. Plus, as part of Wilger's O-ring seal (ORS) fittings, the EFM can be easily configured as a new system or retrofitted into an existing visual flow indicator system as an electronic upgrade. Relying on wireless ECU technology and a user-friendly Android interface, the Wilger EFM eliminates sole reliance on visual flowmeter monitoring—delivering real-time, row-by-row monitoring accuracy and precision performance even in dark conditions.

Additional Configurations Available, Please Call With Specifications

System Highlights:

• Monitor up to 196 meters on up to 10 sections
• Customize & monitor up to 3 products simultaneously
• Compact & low maintenance—components are completely serviceable & replaceable
• ORS design enables retrofit installation into existing systems
• Eliminates visibility difficulties when applying dark liquids or during dark/dusty conditions
• Keyed Deutsch connectors ensure correct connections
• Easy to install, Easy to use—wireless WI-FI connection to in-cab Android tablet (no data required); Tablet not included
• Stabilizing jets accurately measure flow rates of 0.024 – 1.5 US GPM

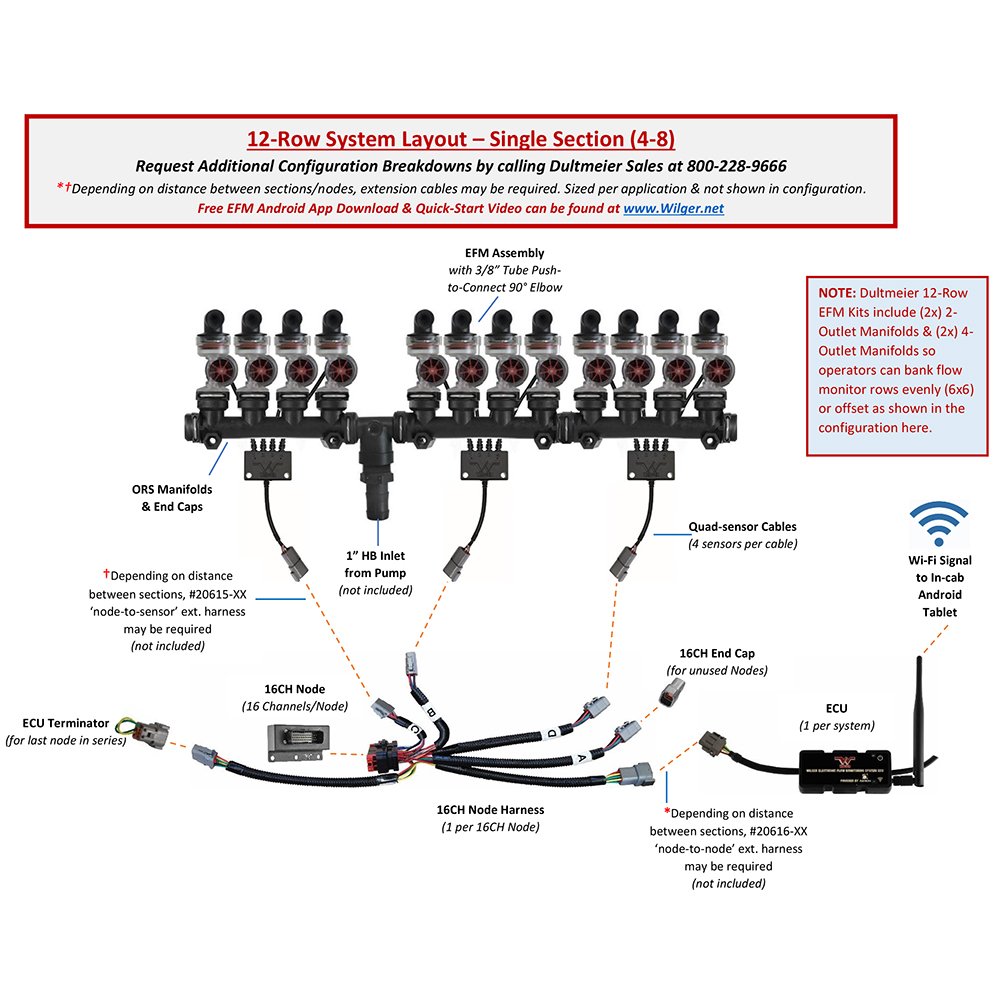

New Installs include ECU, 16 CH Node & Harness, Manifolds, EFM Assemblies, 3/8" 10# Check Valves/Caps & 3/8" Tubing in required Qty.

* Extension Harnesses and Metering Orifices are sized per application and NOT included with EFM Kits – must be ordered separately. Call for configuring assistance.
