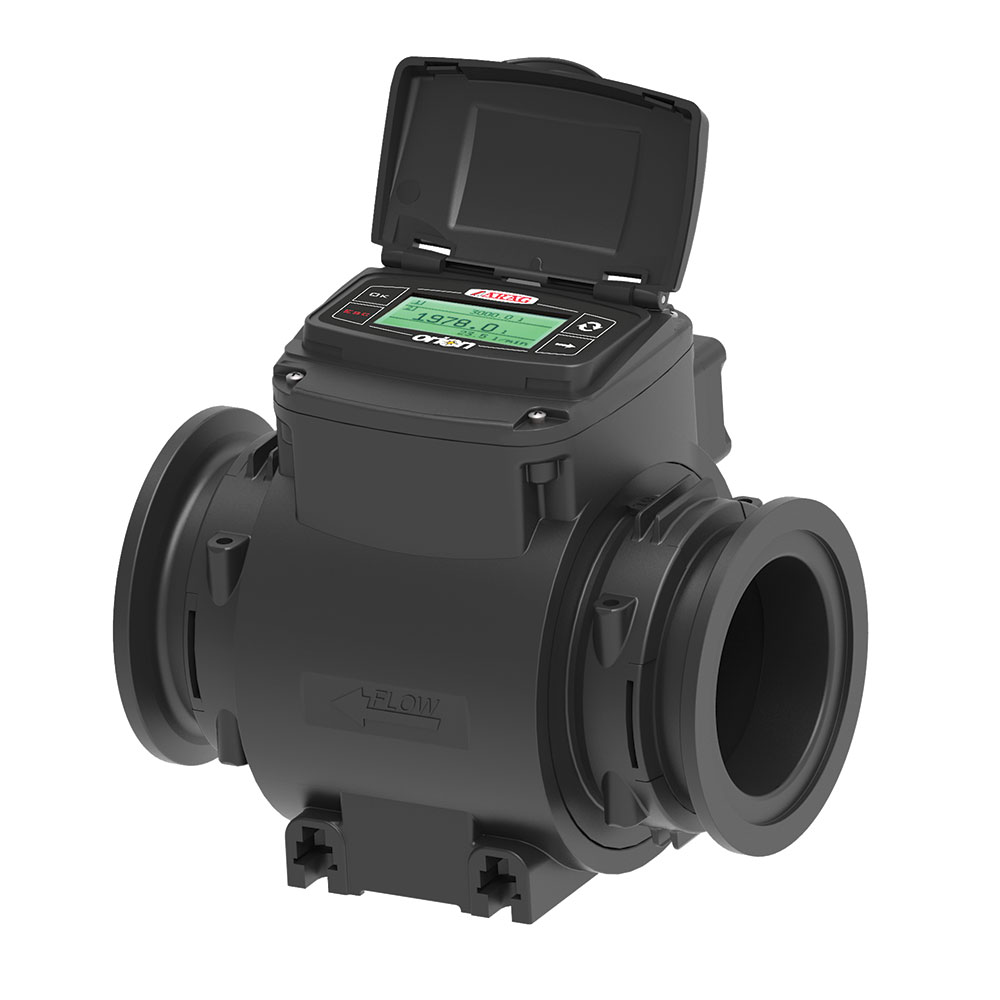

Flow Meter, Electromagnetic: OrionX Mag Meter, 16 - 660 GPM, 3" Flange, Local Display

OrionX™ Flow Meters work by utilizing sensors to relay and convert pulse signals into GPM readings. Orion X™ meters are excellent for any number of fluid applications, including water and chemical fertilizer. The precision electromagnetic technology ensures accurate readings of your liquid flow, volume, or capacity levels - saving you chemical throughout the life of the system. Great for a variety of fluid applications on the farm, ranch, turf, and outdoor systems.

Orion X VisualFlow features easy-to-read localized backlit graphic screen measuring roughly 3" x 1.5". Local read flow meter also designed for remote readout monitors such as the Visio Multifunction Display.

Note: Meter requires 46222A5-100 Power Cable – Sold Separately!

STANDARD FEATURES:

• No mechanical moving parts inside the pipe
• Wetted parts are Nylon reinforced with fiberglass and AISI 316SS
• 12 VDC power source require
• High precision (maximum error is 0.5%)
• Great for high flow rates up to 660 GPM at max 72 PSI
• 3" full port flanged connections (Banjo 3" flange)
• Performance independent from fluid density and viscosity
• Pulse output 0-12 volts with max 300mA consumption
• A-net (Can-bus) connection
• Low sensitivity to turbulence
• Integrates with existing rate controllers and Visio displays
• Adapter cables sold separately

OrionX VisualFlow Features Easy-to-Read Localized Backlit Graphic Screen. Screen Measures Roughly 3" x 1.5".
