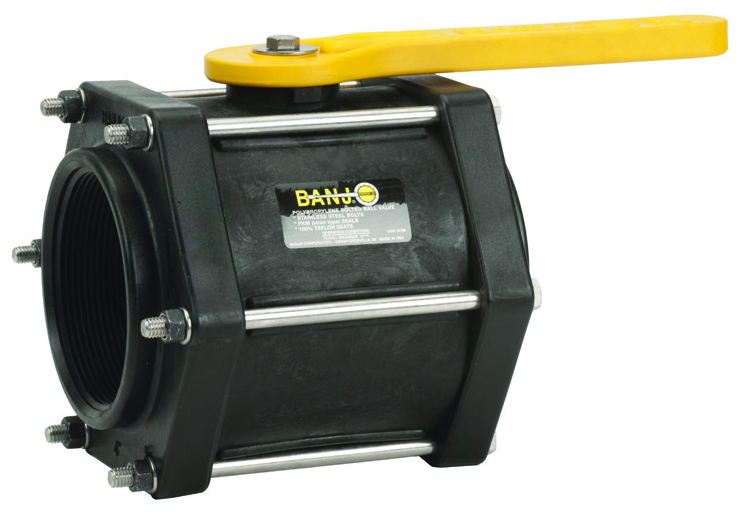

Banjo 3" Full Port Polypropylene Ball Valve

  • Stainless Steel Bolts
  • Viton® Seals
  • 100% Teflon Seats



  • 1/2" - 2": 150 PSI, 4": 75 PSI, 3": 100 PSI.
  • Precision molded in polypropylene reinforced with fiberglass for additional strength.
  • Self-aligning ball moves freely against the Teflon® seals for smooth operation. The valve opens and closes with very little pressure on the handle.
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
  • Viton® "O" ring stem seal. S.S. Bolts.
  • Teflon® self-lubricating stem bushings and seats cannot stick or bind.


Dimensions:

    • Overall length: 6-15/32"
    • Width: 6-5/32"
    • Height: 7-11/32"
    • Handle Length: 9-1/4"
Manufacturer: Banjo Valves & Fittings
SKU: TKV300FP
VIEW CATALOG PAGE E0325
Save!
  • 5% on 6 (EA)
  • 8% on 48 (EA)
  • 12% on 96 (EA)
$153.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Operation TypeManual
Flow StyleFull Port
Body MaterialPolypropylene
Port Size A3"
Port Size B3"
Opening Thru Ball3"
Port Type AFPT
Port Type BFPT
Max PSI100
SeatPTFE
Manufacturer Part NumberV300FP

Additional Information

Viton® is a registered trademark of DuPont Performance Elastomers
