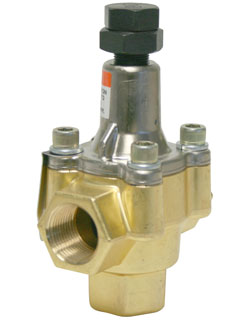

Hydra-Cell Bypass Valve / Unloader Valve, 3-10 GPM, 500-1000 PSI, 3/4" FPT

Designed to handle the same rigorous demands as the Hydra-Cell pumps. These valves will bypass total system flow when required and will also balance system pressure for multiple gun operations. Standard valves feature Brass bodies with Buna O-rings and stainless valve seats and plunger ball. Rated to 160 Deg. F. (200 Deg. available on special request).
Valves with other pressure ranges are available on request.
Manufacturer: Wanner Engineering
SKU: WNC22A
VIEW CATALOG PAGE E0593
$349.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Style Bypass
Body Material Brass
Port Size A 3/4"
Port Type A FPT
Max PSI 1000
Series Hydra Cell
Manufacturer Part Number C22ABBNRREF/C22-0287
