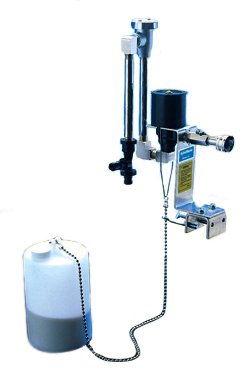

Hydrominder Mixing Valve, 4.5 GPM @ 40 PSI, No Siphon Breaker, Mounting Bracket, 3/8" FPT Inlet, 4:1 to 240:1 Dilution

No Siphon Breaker, Mounting Bracket Included

HydroMinder Chemical Mixing Valves eliminate the need to manually measure and mix concentrated chemicals. These valves keep any tank or reservoir consistently filled and mixed to your specifications without the need for pouring, stirring or hand mixing.
Water flow activated, no electricity or power required. When water level in a tank drops, city water flows through the valve and pulls in solution from your concentrated pail or drum into the chemical eductor. The chemical concentrate then mixes into the water stream and into your tank to the exact mixed ratio to meet your specific needs.
Units with brackets can be mounted to the sidewall of a tank. Units without brackets can be plumbed directly to the inside of a tank.
Models with Siphon breakers are designed to protect against the possibility of chemical backflow into the water supply and may be required by some city codes.
This valve series has flow ranges from 4.5gpm to 25gpm and are available with a dilution range from 1:1 to 1:1200 as shown. Dilution ratios are set by installing the colored mixing tips that are included with each valve.
Inlet ball valve is included on all models except 506, 507 and 511. Valves and adapters are available separately for those models.
