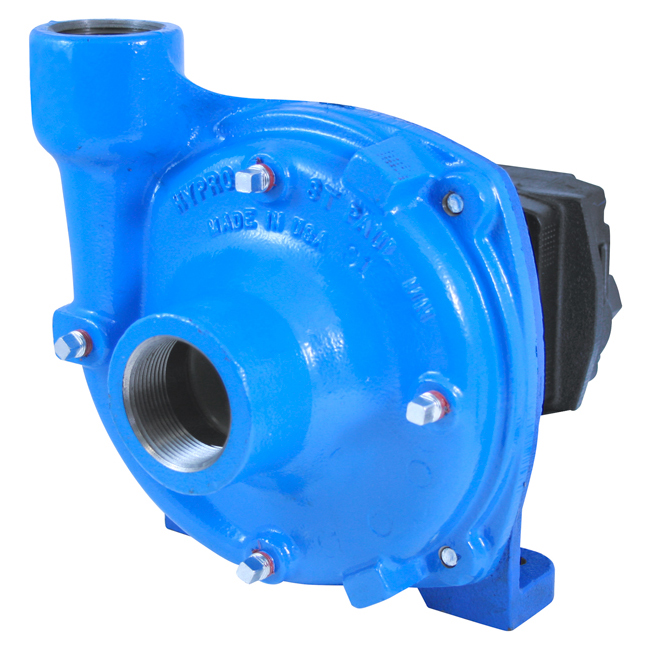

Hypro Cast Iron & Stainless Centrifugal Sprayer Pumps with Hydraulic Motor (9303 & 9306 Series), Threaded

Features:

  • Available in Cast Iron & 316 Stainless Steel
  • Hydraulic Motor Drive (for open center, closed center & load-sensing systems)
  • 1-1/2” NPT Inlet, 1-1/4” NPT Outlet or 2” x 1-1/2”
  • Temperatures to 140° F.
  • Impeller: Cast Iron Models are Nylon & Stainless Steel Models are Polypropylene
  • Hydraulic Motor is Internal Gear Gerotor
  • Cast Iron Models have Viton®/Ceramic Seals (9306CHM3CB and 5CB have Silicon Carbide Seals)
  • Stainless Steel Models have Life Guard® Silicon Carbide Seals
  • Maximum Motor PSI is 3000
Manufacturer: Hypro - Pentair
Trustpilot
Part No.CatalogPump TypeBody MaterialSeal MaterialImpeller MaterialInlet SizeOutlet SizeMax GPMMax PSIDriveWarningPrice
Picture of Hypro 9303C-HM1C Cast Iron Sprayer Pump with Hydraulic Drive
SKU: HY9303C-HM1Catalog: E0237 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Viton®Impeller Material: NylonInlet Size: 1-1/2"Outlet Size: 1-1/4"Max GPM: 114Max PSI: 130Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $1,230.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 2" x 1-1/2", 207 GPM, 130 PSI (Viton® Seals)
SKU: HY9306CHM1CCatalog: E0237 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Viton®Impeller Material: NylonInlet Size: 2"Outlet Size: 1-1/2"Max GPM: 207Max PSI: 130Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $1,395.00 / EA
i h
Picture of Hypro 9303C-HM4C Cast Iron Sprayer Pump with Hydraulic Drive
SKU: HY9303C-HM4Catalog: E0237 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Viton®Impeller Material: NylonInlet Size: 1-1/2"Outlet Size: 1-1/4"Max GPM: 115Max PSI: 93Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $1,186.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 2" x 1-1/2", 212 GPM, 140 PSI (Viton® Seals)
SKU: HY9306CHM5CCatalog: E0237 Pump Type:  Body Material:  Seal Material:  Impeller Material:  Inlet Size:  Outlet Size:  Max GPM:  Max PSI:  Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $1,363.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 2" x 1-1/2", 212 GPM, 140 PSI (SilCarbide Seals)
SKU: HY9306CHM5CBCatalog: E0237 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Viton®Impeller Material: NylonInlet Size: 2"Outlet Size: 1-1/2"Max GPM: 212Max PSI: 140Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $1,573.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 1-1/2" x 1-1/4", 97 GPM, 95 PSI (Viton® Seals)
SKU: HY9303C-HM2Catalog: E0237 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Viton®Impeller Material: NylonInlet Size: 1-1/2"Outlet Size: 1-1/4"Max GPM: 97Max PSI: 95Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $1,186.00 / EA
i h
Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 2" x 1-1/2", 207 GPM, 130 PSI (SilCarbide Seals)
SKU: HY9306SHM1CCatalog: E0237 Pump Type: CentrifugalBody Material: Stainless SteelSeal Material: Silicon CarbideImpeller Material: PolypropyleneInlet Size: 2"Outlet Size: 1-1/2"Max GPM: 207Max PSI: 130Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $2,702.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 1-1/2" x 1-1/4", 147 GPM, 145 PSI (Viton® Seals)
SKU: HY9303C-HM5Catalog: E0237 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Viton®Impeller Material: NylonInlet Size: 1-1/2"Outlet Size: 1-1/4"Max GPM: 147Max PSI: 145Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $1,223.00 / EA
i h
Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 1-1/2" x 1-1/4", 115 GPM, 93 PSI (SilCarbide Seals)
SKU: HY9303SHM4Catalog: E0237 Pump Type: CentrifugalBody Material: Stainless SteelSeal Material: Silicon CarbideImpeller Material: PolypropyleneInlet Size: 1-1/2"Outlet Size: 1-1/4"Max GPM: 115Max PSI: 93Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $2,158.00 / EA
i h
Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 1-1/2" x 1-1/4", 114 GPM, 130 PSI (SilCarbide Seals)
SKU: HY9303SHM1Catalog: E0237 Pump Type: CentrifugalBody Material: Stainless SteelSeal Material: Silicon CarbideImpeller Material: PolypropyleneInlet Size: 1-1/2"Outlet Size: 1-1/4"Max GPM: 114Max PSI: 130Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $2,464.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 2" x 1-1/2", 214 GPM, 135 PSI (SilCarbide Seals)
SKU: HY9306CHM3CBCatalog: E0237 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Silicon CarbideImpeller Material: NylonInlet Size: 2"Outlet Size: 1-1/2"Max GPM: 214Max PSI: 135Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $1,533.00 / EA
i h
Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 1-1/2" x 1-1/4", 125 GPM, 98 PSI (Viton® Seals)
SKU: HY9303C-HM3Catalog: E0237 Pump Type: CentrifugalBody Material: Cast IronSeal Material: Viton®Impeller Material: NylonInlet Size: 1-1/2"Outlet Size: 1-1/4"Max GPM: 125Max PSI: 98Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $1,333.00 / EA
i h
Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 1-1/2" x 1-1/4", 125 GPM, 98 PSI (SilCarbide Seals)
SKU: HY9303SHM3CCatalog: E0237 Pump Type: CentrifugalBody Material: Stainless SteelSeal Material: Silicon CarbideImpeller Material: PolypropyleneInlet Size: 1-1/2"Outlet Size: 1-1/4"Max GPM: 125Max PSI: 98Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $2,228.00 / EA
i h
Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 1-1/2" x 1-1/4", 147 GPM, 145 PSI (SilCarbide Seals)
SKU: HY9303SHM5Catalog: E0237 Pump Type: CentrifugalBody Material: Stainless SteelSeal Material: Silicon CarbideImpeller Material: PolypropyleneInlet Size: 1-1/2"Outlet Size: 1-1/4"Max GPM: 147Max PSI: 145Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $2,188.00 / EA
i h
Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 2" x 1-1/2", 214 GPM, 135 PSI (SilCarbide Seals)
SKU: HY9306SHM3CCatalog: E0237 Pump Type: CentrifugalBody Material: Stainless SteelSeal Material: Silicon CarbideImpeller Material: PolypropyleneInlet Size: 2"Outlet Size: 1-1/2"Max GPM: 214Max PSI: 135Drive: Hydraulic MotorWarning:
WARNING
×

WARNING

Price: $3,213.00 / EA
i h

Additional Information

Viton® is a registered trademark of DuPont Performance Elastomers

Standard Features:

  • High strength, cast iron housing
  • Hydraulic motor drive (for open center, closed center & load-sensing systems)
  • 2" FPT Inlet, 1-1/2" FPT Outlet
  • Nylon impellers
  • Internal gear gerotor hydraulic motor
  • Viton®/Carbon/Ceramic Seals
  • Temperatures up to 140° F
  • Max Motor PSI: 3,000
