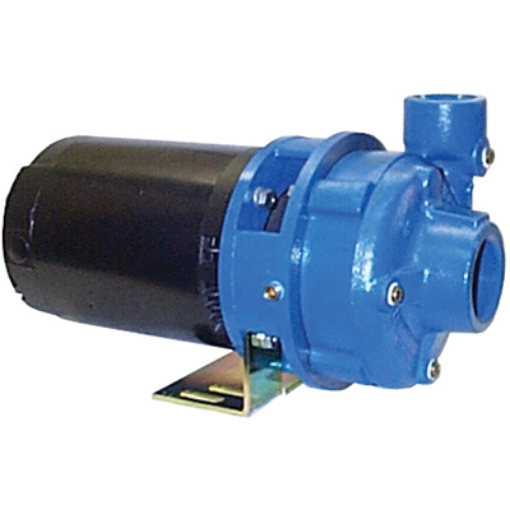

Picture of Industrial Centrifugal Pump / TEFC Motor Unit, Model 16, Cast Iron, 2" X 1.5" FPT, 1.5 HP, 3 PH, 208-230/460 Volts, 60 Max GPM, 29 GPM @ 30 PSI, 4.88" Impeller, EPDM Seal

Industrial Centrifugal Pump / TEFC Motor Unit, Model 16, Cast Iron, 2" X 1.5" FPT, 1.5 HP, 3 PH, 208-230/460 Volts, 60 Max GPM, 29 GPM @ 30 PSI, 4.88" Impeller, EPDM Seal

For Industrial Applications

2" x 1.5" FPT Ports.
Close-Coupled Motors, 3 Phase, 3500 RPM, Open Drip-Proof (ODP) or Totally Enclosed Fan Cooled (TEFC) Motors, 3/4 HP through 3 HP Available.
Standard Fitted (Iron Casing, Adapter & Impeller, Brass Wear Ring, Mechanical Seal as Noted), Max Temp 180° F., EPDM or Buna Mechanical Seals (Viton® also Available). Do Not Use EPDM Seals for Oil-Based or Solvent-Based Products (Use Buna or Viton®).
Bronze Fitted, All Bronze and All Iron Also Available.
Enclosed Impellers for Maximum Efficiency.

Note: NOT SUITABLE for use with Fertilizer. Internals are brass.
Need a fertilizer pump? Click here to view Scot's Agricultural Pumps
Many Other Models Available Including Pump Ends & Repair Kits.
S.G. = Specific Gravity. Water has Specific Gravity of 1.0 (and 8.34 Lbs./Gal). If product is heavier than water and Max. S.G. shown for pump is 1.0, then do not use or call for similar pump with additional horsepower.
