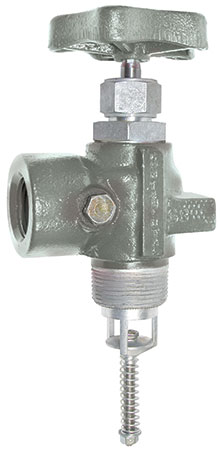

Liquid Withdrawal Valve for NH3: 1-1/4" MPT x 1" FPT, 42 GPM Excess Flow Check

For Applicators or Nurse Tanks

The B1206E High flow liquid withdrawal valve with 1-1/4" MPT x 1" FPT Outlet, for applicators or nurse tanks with excess flow check at 42 GPM.

1200 Series Valves Feature:

  • Stainless steel stem - Precision ground & polished.
  • Ductile iron body - 400 PSI WOG.
  • Field proven nylon seat in swivel poppet retainer.
  • Teflon stem packing. Positive seal.
  • All steel excess flow check for use with NH3 and additives.
  • Every valve pressure tested after assembly.
  • All 1200 Series parts are interchangeable.



Manufacturer: Continental NH3 Products
SKU: CNB1206E
VIEW CATALOG PAGE E0435
Save!
  • 5% on 10 (EA)
$183.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Body Material Ductile Iron
Port Size A 1-1/4"
Port Size B 1"
Port Type B FPT
Manufacturer Part Number B-1206-E

Additional Information

The Withdrawal Rates and PSI Differential closing above were obtained using standard 1-5/8" I.D. Dip Tube.
