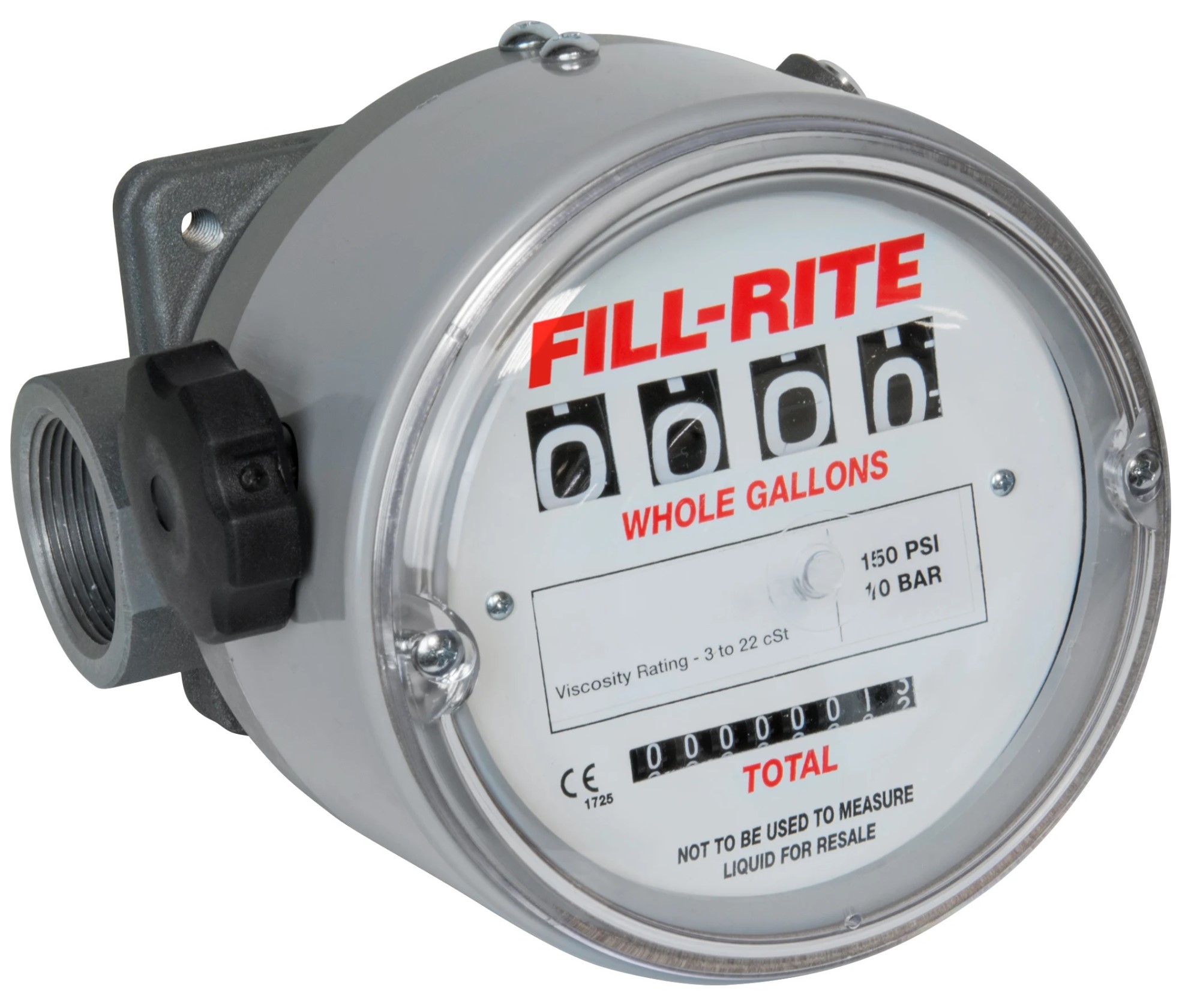

Mechanical Fuel Flow Meter,1-1/2", 6 to 60 GPM

For Heavy Oils & High-Viscosity Liquids

TN860AN-A is part of Fill-rite's TN860 Series of mechanical fuel meters which are designed for high-pressure, high-volume applications where are transferred and highly accurate readings are desired. TN860 flow meters are constructed of anodized aluminum for maximum durability and added corrosion-resistance across the lifetime of the meter. The FRTN860AN-N flow meter measures fuels in whole gallon increments up to 1,000 gallons per batch with +/- 2% accuracy. An oversized, easy-to-read 4-wheel counter with 11/16" digits registers flowrates between 6 – 40 GPM, while a 7-digit lifetime totalizer keeps track of total gallons measured. This high-pressure, aluminum flow meter is ideal for quickly and safely transferring heavy oils or high-viscosity liquids such as diesels, biodiesel (up to B20), fuel oil #2, and kerosene.

Features:

• Pump Body Material: Aluminum

• Display Type: 4-Digit Mechanical

• Inlet/Outlet Size: 1-1/2" FPT

• Unit of Measure: Whole Gallons

• Viscosity (cSt): 3-22

• Max Flowrate: 6 - 40 GPM

• Accuracy (+/- %): 2

• Repeatability (+/- %): 0.25

• Max Operating/Discharge Pressure: 150 PSI @ 70° F

• Operating Temperature Range: -15° to 180° F

• Warranty: 2 Year


NOT for resale use. Made in the USA.
