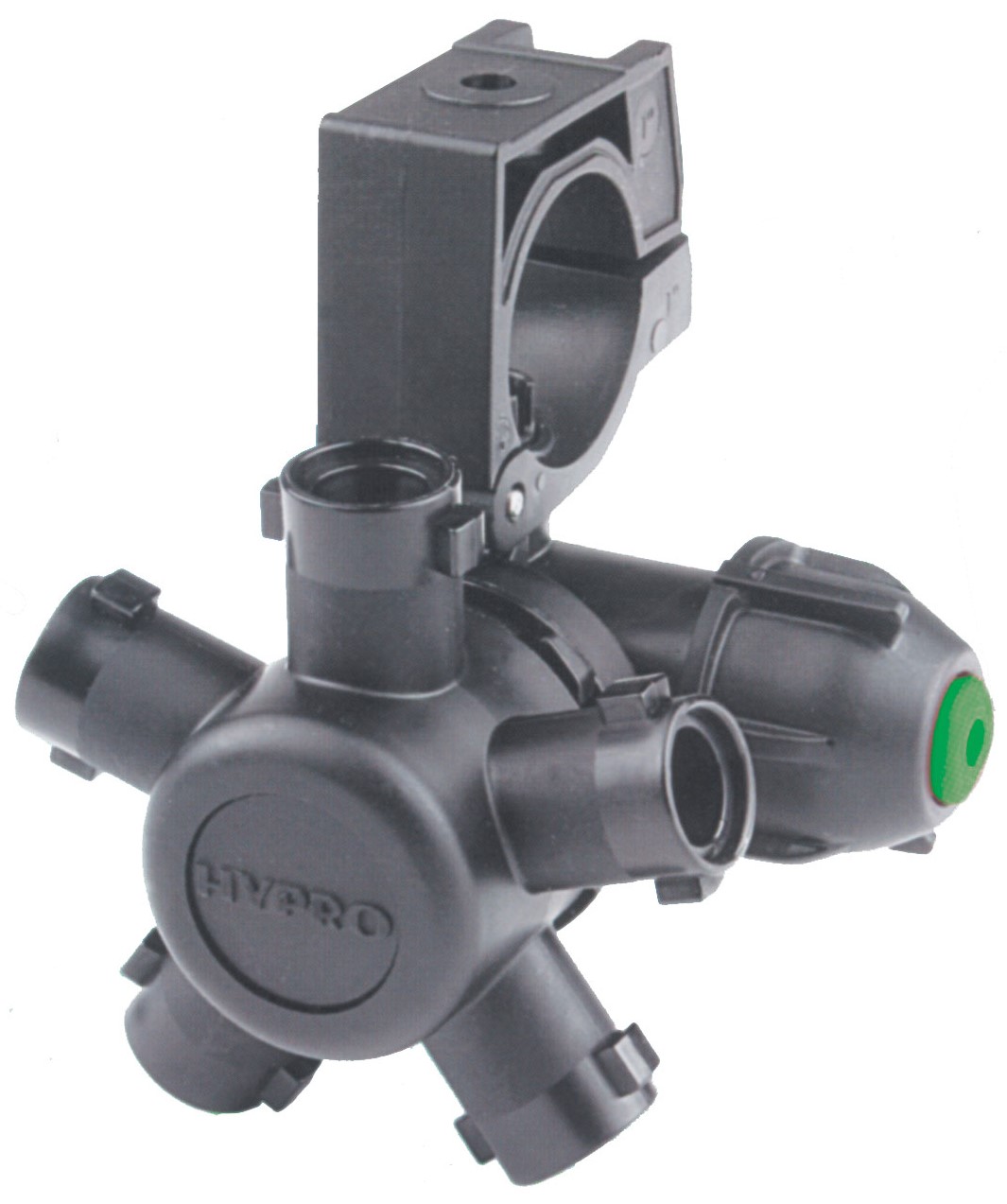

Nozzle Body (5 Nozzle) for 3/4" Boom / Viton®

For Wet or Dry Booms

Standard Equipment on Many Commercial Sprayers. For wet booms, use 3/4" or 1" size. For dry booms use the 3/4" size and add 3/4" or 1" single or double hose connectors.

Features:

• Three turret style for an easy change of spray tips, single, 3-way & 5-way.
• Available in wet or 3/4" & 1" dry boom versions.
• Positive shutoff between each spray position.
• Unique DCV (diaphragm check valve) design reduces restrictions in the flow path, enabling 2.6 GPM with a 5 PSI pressure drop through the nozzle.
• Can be used with all Quick Attach spray tips & caps. Gaskets & tips not included.
• Supports faster field speeds with the same coverage & supports direct fertilizer application through the nozzle body DCV flow path.
• Automatic spray alignment using flat fan spray tips.
• ProFlo nozzle bodies come standard with an 8 PSI Viton® check valve 4 PSI, 12 PSI, 20 PSI & 25 PSI check valves are available as options.

Caps, gaskets and spray tips not included.

Viton® is a registered trademark of DuPont Performance Elastomers
