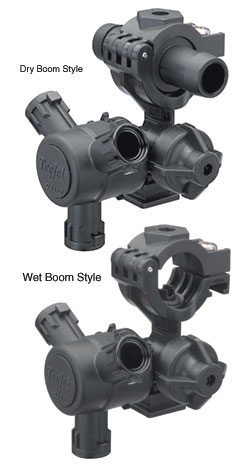

Nozzle Body Turret, QJ370 Series, 3 Outlet QuickJet, 3/4" Double HB

High Flow Rates In a Compact Design



  • Compact high flow nozzle body with choice of 3 or 5 Outlets & 1/2", 3/4" or 1".
  • Positive indexing and shut-off between each spray position.
  • Flow rate for three outlet: 2.6 GPM @ 5 PSI; 3.6 GPM @ 10 PSI.
  • Available with 1/2", 3/4" & 1" single or double hose barb.
  • 10 PSI diaphragm check standard; 2 PSI available.
  • Viton® o-rings and diaphragm.
  • Hinged upper clamp & stainless steel bolt with captured nut reduces installation time.
  • Automatic spray tip alignment for use with Quick Teejet® caps.
  • Mounts to 3/8" hole in pipe (Wet Boom Style).
  • Body features mounting lugs for use with Teejet® Vari-Spacing clamps for attaching to dry boom sprayers.
  • Maximum pressure of 300 PSI.


For 5 Outlet Versions, Order SSQJ375-XXX-1 (or 2) NYB.

Manufacturer: TeeJet / Spraying Systems
SKU: SSQJ373-750-2NYB
VIEW CATALOG PAGE E1116
Save!
  • 10% on 50 (EA)
  • 10% on 50 (EA)
$11.80 / EA
