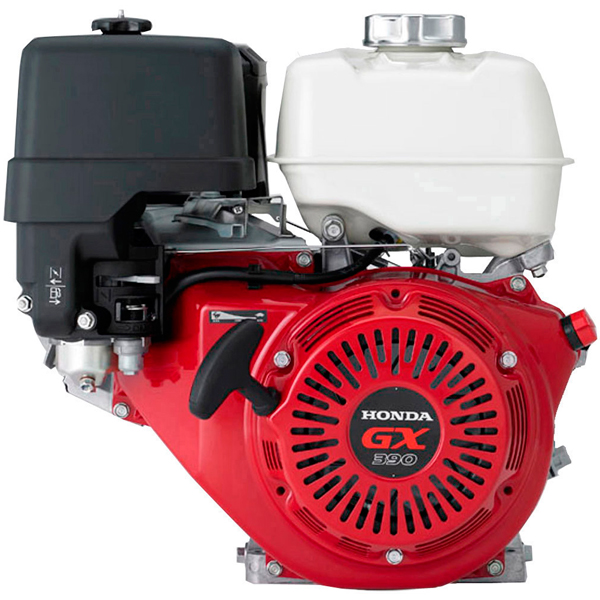

OHV, Horizontal Shaft Standard Engine with 12-Volt Start, 11.7 HP, 1" Crankshaft

GX390 Series • Standard Engine

Honda GX engines are among the most powerful, most reliable, and highest performing engines available for a multitude of applications ranging from commercial pressure washers and lawn care equipment to agricultural equipment and water pumps. The Honda GX390 engine is Honda's largest single cylinder industrial engine. Engines include all standard Honda components plus a CDI ignition with electric advance, oil alert feature, and automatic decompression release. Fuel tanks are 6.4 quarts.

Model GX390K1QAE electric start engine features a 12-volt starter and 3-amp charging system. (18-amp alternator also available.)

Standard Features:

  • Type: Air-cooled 4-stroke OHV
  • Crankshaft: 1" diameter tapped 3/8-24 UNF with keyway
  • HP: 11.7
  • RPM: 3,600
  • Bore: 88 x 64 mm
  • Displacement: 389cc
  • Ignition Type: Digital CDI
  • Starter: 12-volt electric start
  • Oil Capacity: 1.16 Qt.
  • Fuel Type: Unleaded 86 or higher
  • Fuel Tank Capacity: 6.4 Qt.


Note: This engine is not available to ship UPS.

Honda has revised the advertised horse power ratings to comply with the more conservative SAEJ1349 standards.

For optimum performance and safety, we recommend you read the Owner's Manual before operating your Honda Power Equipment.

Manufacturer: Honda Small Engines
SKU: AEGX390K1QAE
VIEW CATALOG PAGE E0502
$945.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Additional Information

HONDA Overhead Valve Engines Overhead valve design delivers exceptional performance while keeping size and weight to a minimum. Built with a full range of features to keep them running for a long time.

Honda's superior four-stroke technology includes:

  • Cast Iron cylinders
  • Ball bearing supported forged crankshaft
  • Chrome top piston ring
  • Mechanical governor
  • Fixed jet float type carburetor
  • Replaceable valve guides and automatic decompression for easy starting
  • "Oil Alert" system which shuts down the engine if oil supply reaches an unsafe level
  • Transistorized ignition systems on all except 11 & 13 HP models which have CDI systems with Electronic Advance.

Note: Honda has revised the advertised horse power ratings to comply with the more conservative SAEJ1349 standards.

OIL ALERT™ SYSTEM
Honda's Oil Alert™ System offers added protection for your Honda engine. It shuts off the engine automatically before the oil level in the crankcase falls below the safe limit. Honda's Oil Alert is a simple, reliable means of preventing engine problems and assuring your engine of more time on the job.
