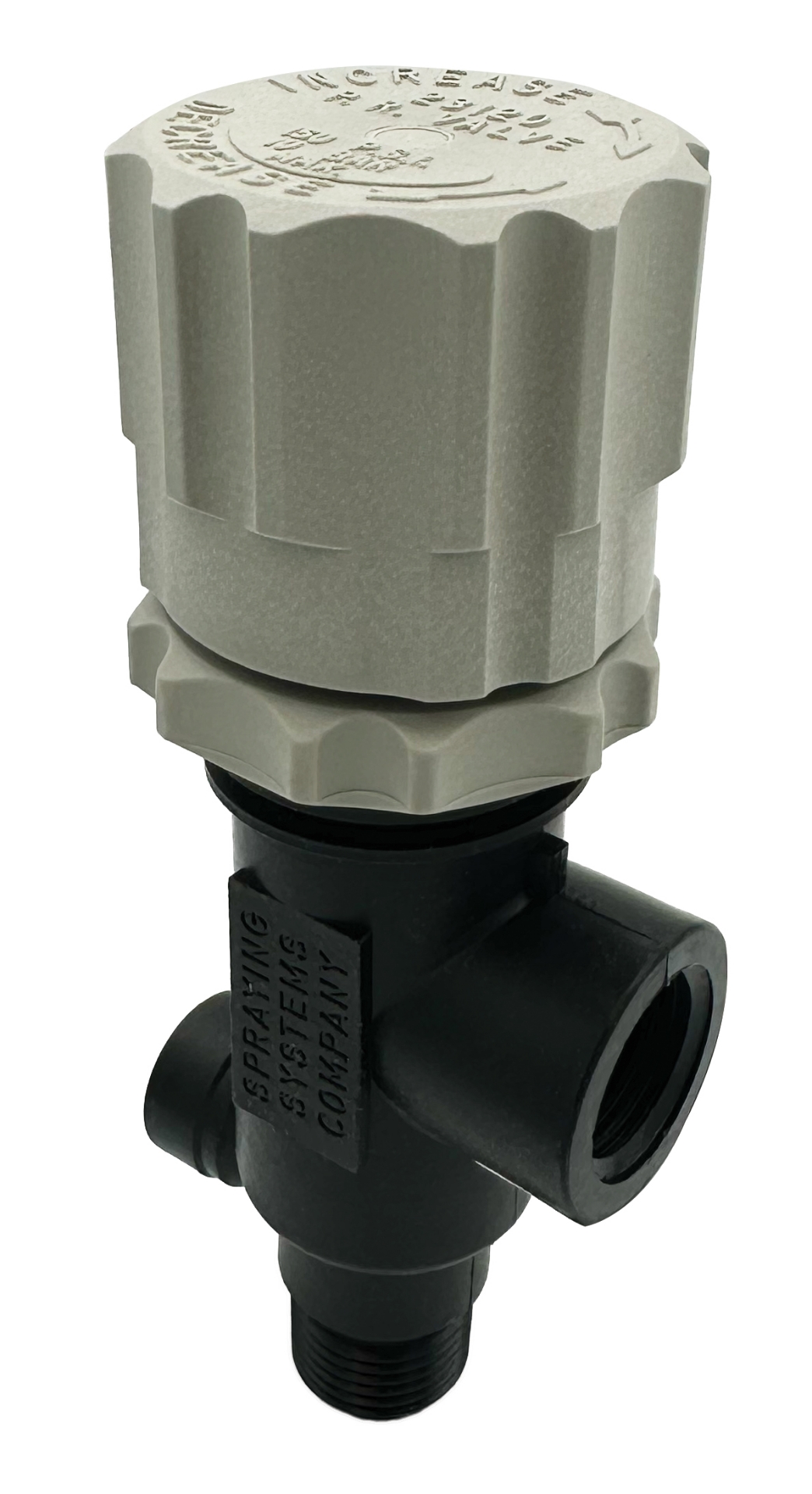

Piston Style Pressure Relief Valve, Polypropylene, 3/4"

• 1/4" Gauge Port
• Pressure to 150 PSI
• Polypropylene with stainless steel spring
• Excellent Chemical Resistance
• EPDM O-Rings

23120 Bypasses excess liquid. Adjustable to maintain control of line pressure up to 150 PSI. Selected setting firmly held in place by locknut. Extra large valve passages to handle large flows. Available in either 3/4" or 1/2" sizes. Ports are MPT inlet by FPT outlet. (Gauge port is tapped but not drilled).
Manufacturer: TeeJet / Spraying Systems
SKU: SS23120PP-3/4
VIEW CATALOG PAGE E0375
$30.50 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Style Pressure
Body Material Polyethylene
Port Size A 3/4"
Port Size B 3/4"
Port Type A MPT
Port Type B FPT
Max PSI 150
Manufacturer Part Number 23120-3/4-PP
