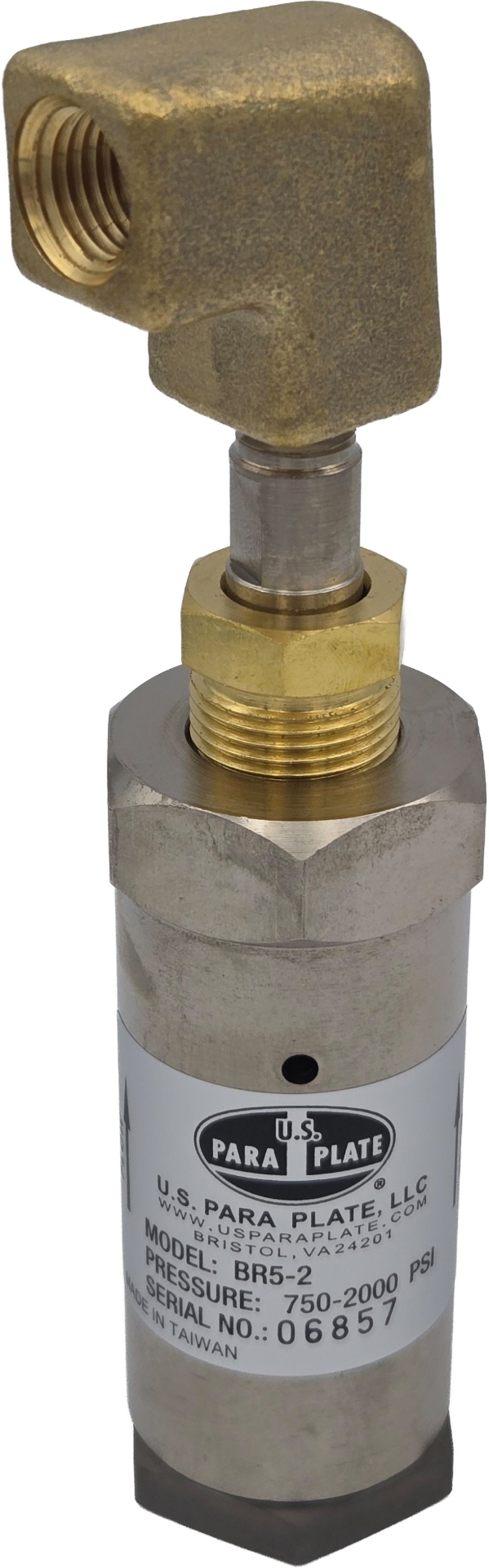

Pressure Relief Valve, 5 GPM, 750 to 2000 PSI, 3/8" FPT Inlet, 1/4" FPT Outlet

For accurate, repeatable by-pass regulation wherever absolute reliability in pump output control is necessary. Continually regulates pressure within 5% of setting. Can be set up to both regulate and absorb normal pulsation thus eliminating the need for a pulsation dampener. Can be parallel mounted. Responds in .004 seconds or less. Designed for Weep Systems.

Materials:
• Body and Stem; Steel, Electroless Nickel plated.
• 416SST hardened stainless steel Piston Cap & Inlet Cap.
• Spring steel Springs.
• Viton® Seals.
• Maximum temperature 250° F.
Requires 5% minimum by-pass. Not recommended for use with single or two cylinder pumps.

Manufacturer: US Paraplate
SKU: UPBR5-2
VIEW CATALOG PAGE E0069
$95.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Body Material Nickel-Plated Steel
Port Size A 3/8"
Port Type A FPT
Max PSI 2000
Manufacturer Part Number BR5-2

Additional Information

Viton® is a registered trademark of DuPont Performance Elastomers
