Hypro 3430-0692 - Pump Head Kit for installation of 1543P Series on 13 HP Briggs or Honda Engines

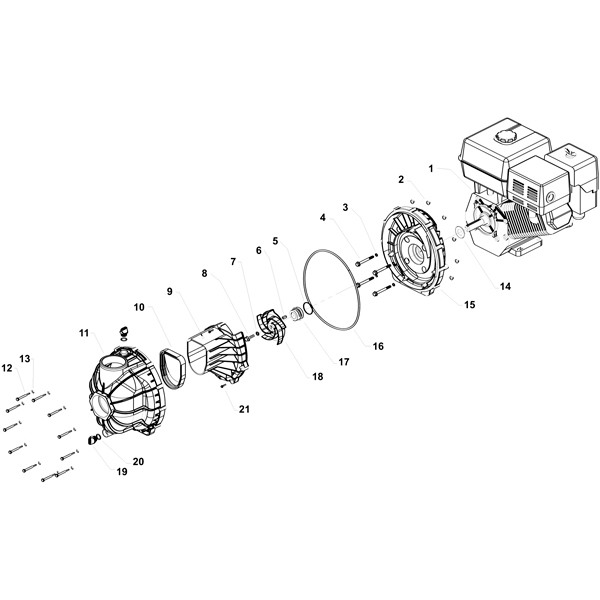

Pump Head Kit 3430-0692 includes all parts shown in diagram less the engine (Ref. #1):

(11) Ref. 2 Hex Flange Nut
(4) Ref. 3 O-Ring
(4) Ref. 4 Hex Flange Bolt
(1) Ref. 5 O-Ring
(1) Ref. 6 Key (Square)
(1) Ref. 7 O-Ring
(1) Ref. 8 Hex Flange Bolt
(1) Ref. 9 Pump Volute
(1) Ref. 10 Flapper Valve
(1) Ref. 11 Pump Housing
(11) Ref. 12 Hex Head Cap Screw
(11) Ref. 13 Flat Washer
(1) Ref. 14 Sling Ring
(1) Ref. 15 Back Plate
(1) Ref. 16 O-Ring
(1) Ref. 17 Mechanical Seal
(1) Ref. 18 Impeller
(2) Ref. 19 Fill / Drain Plug
(2) Ref. 20 O-Ring
(4) Ref. 21 Hex Washer Head Screw

for 1543P-90SP, 1543P-90ESP, 1543P-130SP, 1543P-130ESP, 1543P-390EHSP Gas Engine, Self Priming, Polypropylene Transfer Pumps.
