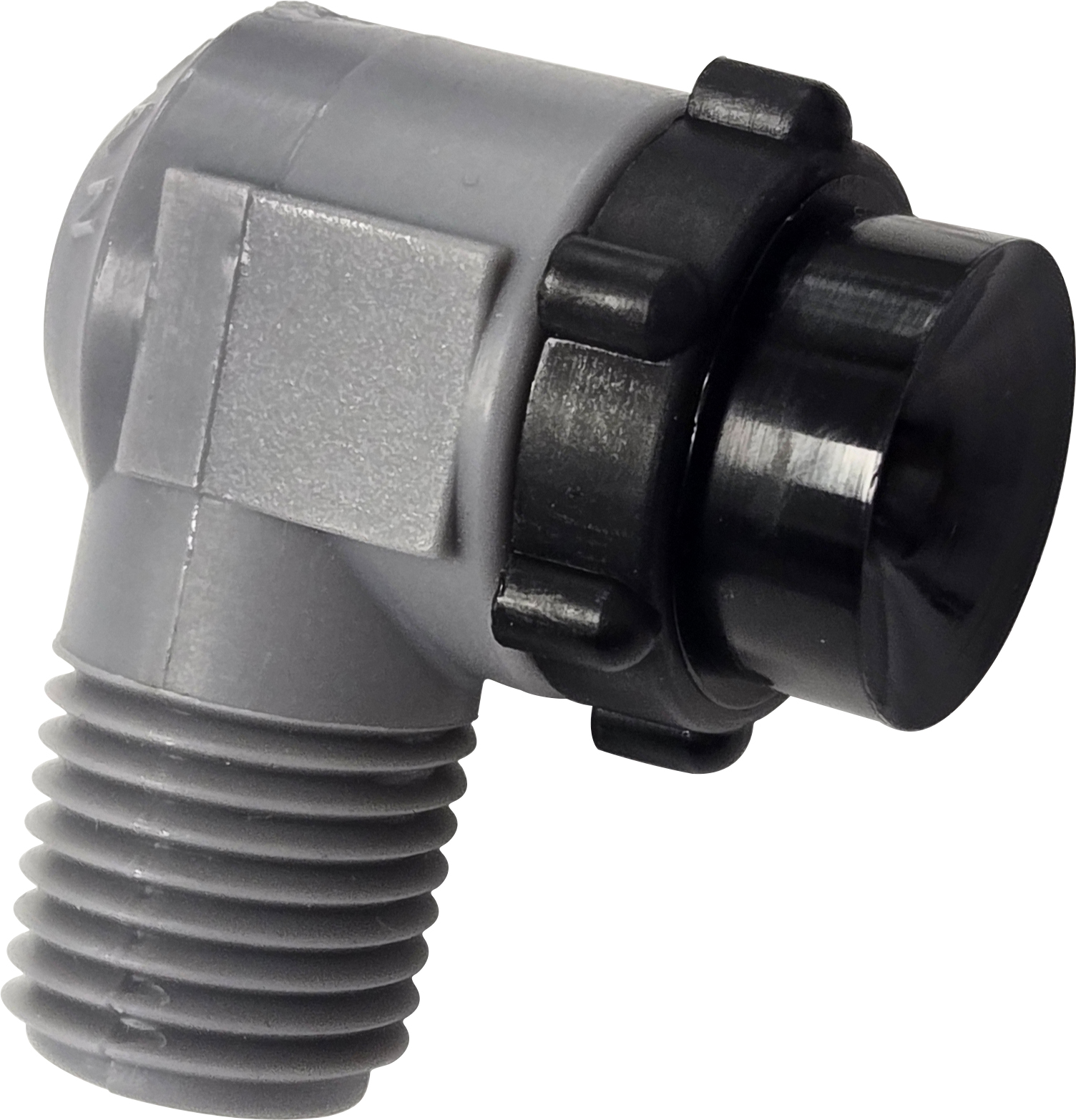

Raindrop Hollow Cone Spray Nozzle, 1/4" GRAY

Color-Coded

Delavan Raindrop® nozzles are designed to deliver a wide-angle, hollow-cone spray pattern that minimalizes drifting in your broadcast spraying applications. The 1/4" Raindrop® hollow cone spray nozzles feature a 120° wide-angle which improves uniform spray distribution compared with flooding nozzles. A large orifice opening and passages, plus no internal vanes or distributors, combine to minimize clogging.

Like the type-RD Raindrop® nozzles, type-RA hollow cone nozzles are engineered with a unique, patented secondary swirl chamber within the nozzle cap which alters the swirling action of the liquid, therefore increasing droplet size (810 microns @ 40 PSI) and reducing the number of driftable particles. This makes these broadcast nozzles an ideal option when spray drift is a problem. An ideal replacement for conventional wide-angle nozzles, these spray tips are great for a variety of low-drift broadcast applications with boom-type sprayers and other spraying equipment. Well suited for high-volume, high-speed applications with flotation or truck-mounted equipment.

A 100% overlap of spray pattern is recommended for best coverage.


Standard Features:
  • Durable thermoplastic construction
  • Wide-angle, hollow cone design
  • Large droplet sizes
  • Drastic reduction of drift potential
  • Large orifice minimalizes clogging
  • Uniform spray distribution
  • ISO color coding

Technical Specs:
  • Type: Hollow Cone / Broadcast Nozzle
  • Body Material: Nylon/Thermoplastic
  • Tip Material: Nylon/Thermoplastic
  • Inlet Size & Thread: 1/4" MPT
  • Orifice Size: 1/4"
  • Operating PSI: 20-60 PSI
  • Max PSI: 100 PSI
  • Spray Pattern: Hollow Cone
  • Spray Angle: 120°







Manufacturer: Delavan Ag Spray Nozzles
Save!
  • 10% on 100 (EA)
$9.00 / EA
