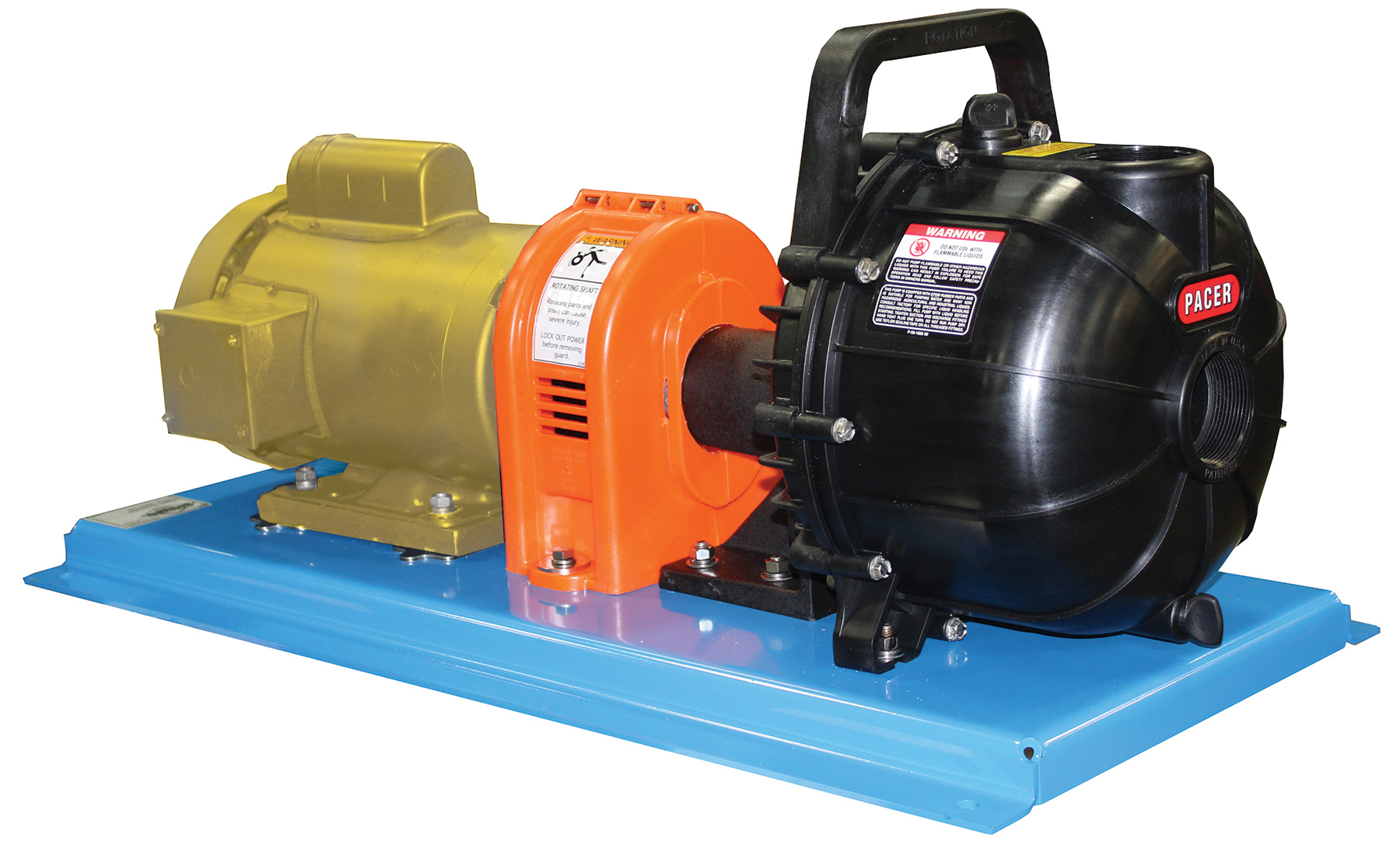

Self Priming Centrifugal Pump Unit, Polyester, 2" Ports, 5 HP, 1 PH, 1.4 Max SG, 230V (High Flow Series with EPDM Seal & 975.30 Impeller)

Fertilizer transfer units, with PACER glass-filled polyester centrifugal pumps, have a LoveJoy shaft coupling with safety shield between the motor and pump shaft. EPDM mechanical seals. Units with TEFC, 3450-RPM, one or three phase motors in 2, 3, 5, 7-1/2 and 10 HP are available. Do not pump substances which have pH factor of over 10 or a temperature of over 200 Deg. F. The PERFORMANCE CHART is based on water.

Note:

  • DO NOT USE STANDARD 3 HP SIZE FOR LIQUIDS HEAVIER THAN WATER - USE 3010-E instead.
  • 3" Units not available with the carrying handle.


Viton® is a registered trademark of DuPont Performance Elastomer.

Manufacturer: Dultmeier Sales
$2,590.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Pump TypeCentrifugal
Seal TypeMechanical
Body MaterialPolyester
Seal MaterialEPDM
Inlet Size2"
Outlet Size2"
Inlet ConnectionFPT
Outlet ConnectionFPT
Self-PrimingYes
Pump MfgPacer Pumps
Max Specific Gravity1.4
DriveElectric Motor
Drive StyleLong Coupled
Motor HP5
Phase1
Voltage230 Volt
Manufacturer Part NumberPR5010A

Additional Information

Viton® is a registered trademark of DuPont Performance Elastomers
