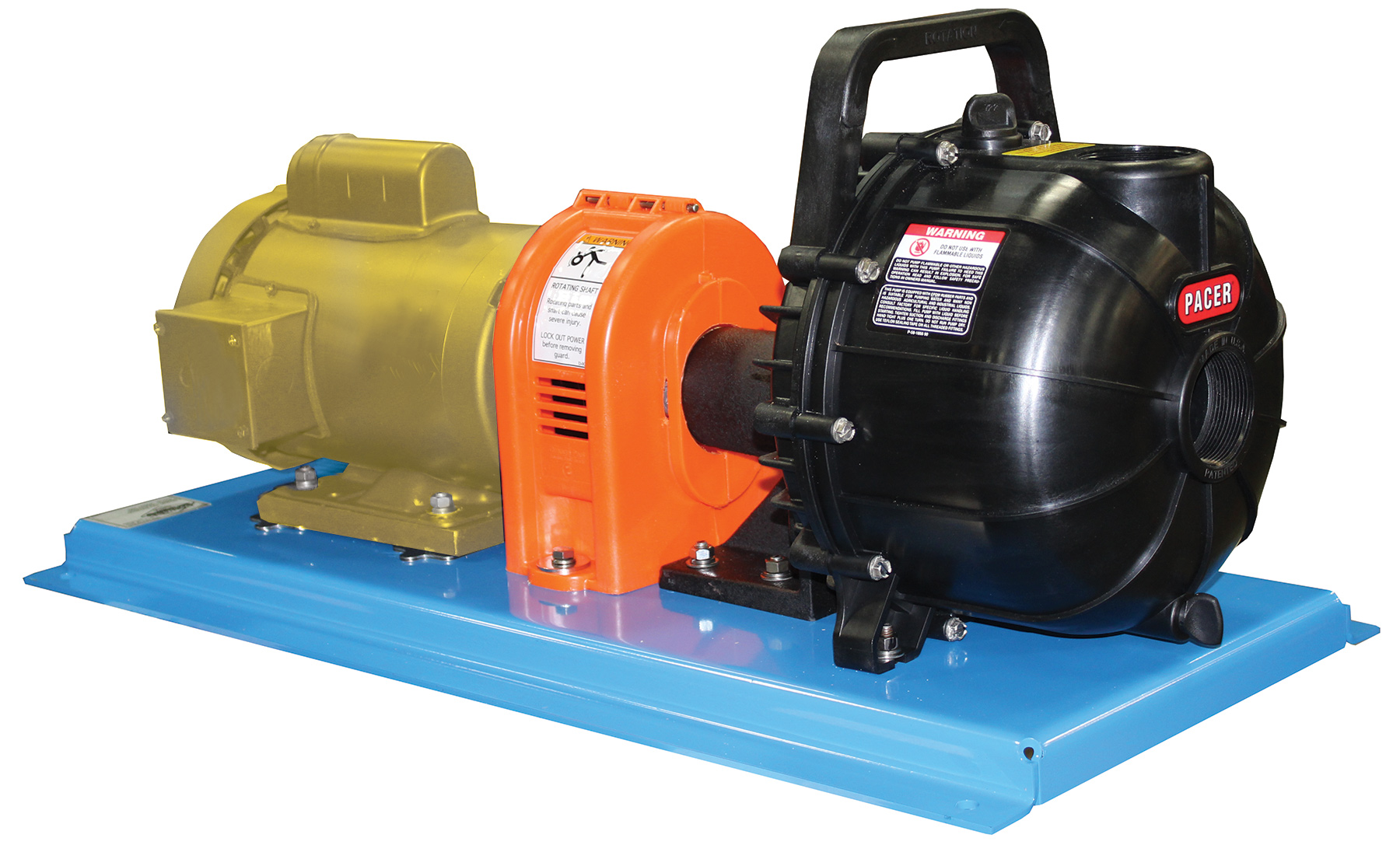

Self Priming Centrifugal Pump Unit, Polyester, 2" Ports, 5 HP, 3 PH, 1.4 Max SG, 208/230-460V (High Flow Series with Buna Seal & 975.30 Impeller)

Fertilizer transfer units, with PACER glass-filled polyester centrifugal pumps, have a LoveJoy shaft coupling with safety shield between the motor and pump shaft. EPDM mechanical seals. Units with TEFC, 3450-RPM, one or three phase motors in 2, 3, 5, 7-1/2 and 10 HP are available. Do not pump substances which have pH factor of over 10 or a temperature of over 200 Deg. F. The PERFORMANCE CHART is based on water.

Note:

  • DO NOT USE STANDARD 3 HP SIZE FOR LIQUIDS HEAVIER THAN WATER - USE 3010-E instead.
  • 3" Units not available with the carrying handle.


Viton® is a registered trademark of DuPont Performance Elastomer.

Manufacturer: Dultmeier Sales
SKU: DUPR5030A
Trustpilot
Call for pricing
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Pump Type Centrifugal
Seal Type Mechanical
Body Material Polyester
Seal Material Buna
Inlet Size 2"
Outlet Size 2"
Inlet Connection FPT
Outlet Connection FPT
Self-Priming Yes
Pump Mfg Pacer Pumps
Max Specific Gravity 1.4
Drive Electric Motor
Drive Style Long Coupled
Motor HP 5
Phase 3
Voltage 208/230/460
Manufacturer Part Number

Additional Information

Viton® is a registered trademark of DuPont Performance Elastomers
