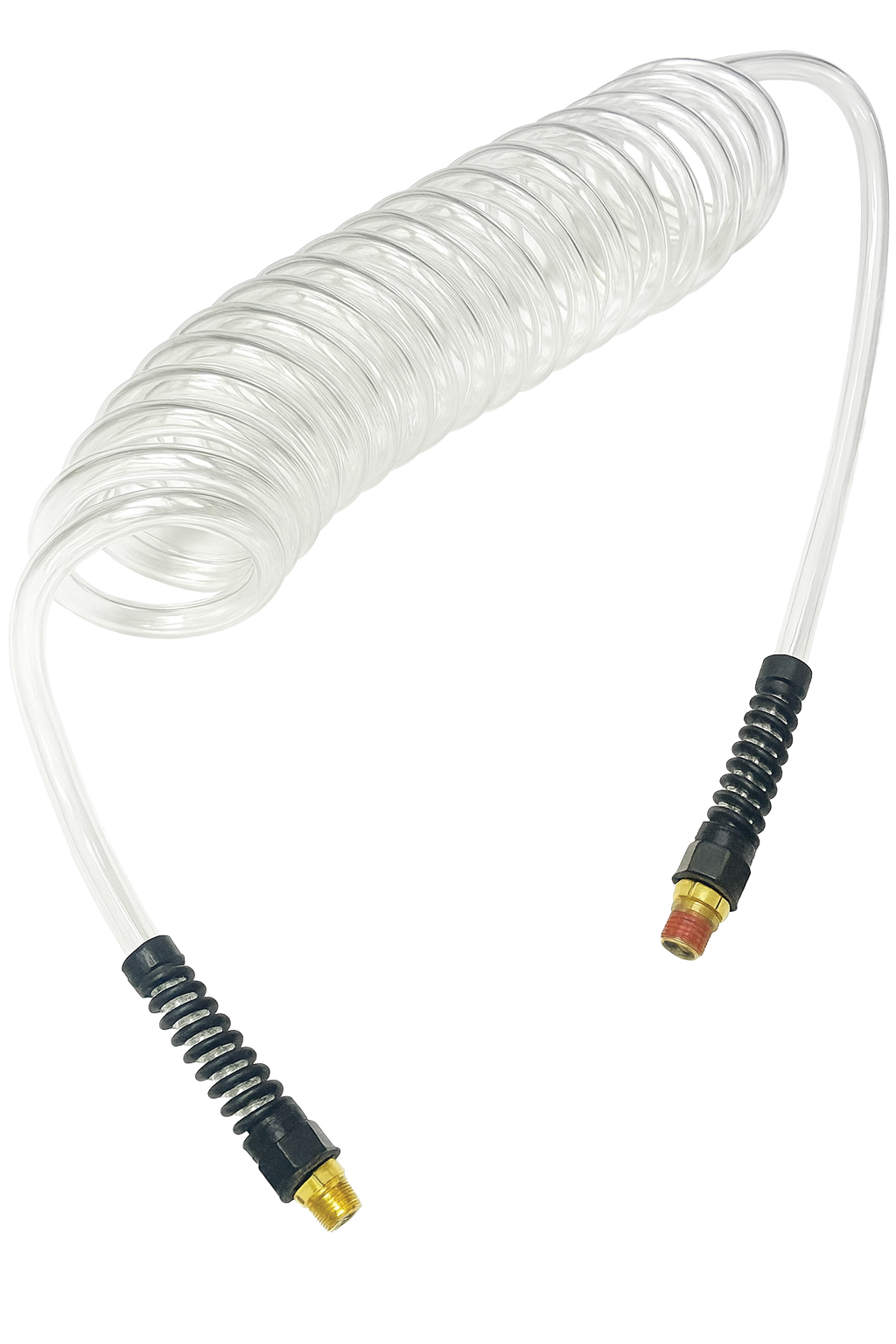

Self-Storing Coil Hoses, Polyurethane, Clear

Ideal for use as air hoses. Stretch them out to use them and they self coil when you are finished. Polyurethane construction is highly kink and abrasion resistant with strength and flexibility. Superior oil resistance.

Each assembly comes standard with one swivel end and one solid end protected by bend restrictors. All hoses feature a 4" pigtail on one end and a 20" on the other. Rated to 140 psi. 1/4" hoses feature 1/4" MPT fittings. 3/8" ID hoses feature 3/8" MPT fittings. Replacement fittings are also available. Temperature Range is -68° F. to 140° F.

Manufacturer: Freelin-Wade
Part No.CatalogTube MaterialLengthHose I.D.Max PSIMin Temp (Deg. F)Max Temp (Deg. F)ColorApplicationPrice
Picture of Coiled Air Hose, Clear, 1/4" ID, 17 ft. Working Length, 20 ft. Overall Length, Polyurethane
SKU: TFA1001CCatalog: E1122 Tube Material: PolyurethaneLength: 16'Hose I.D.: 0.25"Max PSI: 140Min Temp (Deg. F): -68Max Temp (Deg. F): 140Color: ClearApplication: Self-Storing CoilPrice: $48.00 / EA
i h
Picture of Coiled Air Hose, Clear, 1/4" ID, 27 ft. Working Length, 30 ft. Overall Length, Polyurethane
SKU: TFA1002CCatalog: E1122 Tube Material: PolyurethaneLength: 25'Hose I.D.: 0.25"Max PSI: 140Min Temp (Deg. F): -68Max Temp (Deg. F): 140Color: ClearApplication: Self-Storing CoilPrice: $51.50 / EA
i h
Picture of Coiled Air Hose, Clear, 1/4" ID, 37 ft. Working Length, 40 ft. Overall Length, Polyurethane
SKU: TFA1012CCatalog: E1122 Tube Material: PolyurethaneLength: 35'Hose I.D.: 0.25"Max PSI: 140Min Temp (Deg. F): -68Max Temp (Deg. F): 140Color: ClearApplication: Self-Storing CoilPrice: $61.50 / EA
i h
Picture of Coiled Air Hose, Clear, 3/8" ID, 17 ft. Working Length, 20 ft. Overall Length, Polyurethane
SKU: TFA1007CCatalog: E1122 Tube Material: PolyurethaneLength: 16'Hose I.D.: 0.375"Max PSI: 140Min Temp (Deg. F): -68Max Temp (Deg. F): 140Color: ClearApplication: Self-Storing CoilPrice: $68.50 / EA
i h
Picture of Coiled Air Hose, Clear, 3/8" ID, 27 ft. Working Length, 30 ft. Overall Length, Polyurethane
SKU: TFA1008CCatalog: E1122 Tube Material: PolyurethaneLength: 25'Hose I.D.: 0.375"Max PSI: 140Min Temp (Deg. F): -68Max Temp (Deg. F): 140Color: ClearApplication: Self-Storing CoilPrice: $85.50 / EA
i h
Picture of Coiled Air Hose, Clear, 3/8" ID, 37 ft. Working Length, 40 ft. Overall Length, Polyurethane
SKU: TFA1011CCatalog: E1122 Tube Material: PolyurethaneLength: 35'Hose I.D.: 0.375"Max PSI: 140Min Temp (Deg. F): -68Max Temp (Deg. F): 140Color: ClearApplication: Self-Storing CoilPrice:
Save!
  • 5% on 10 (EA)
$105.00 / EA
i h
