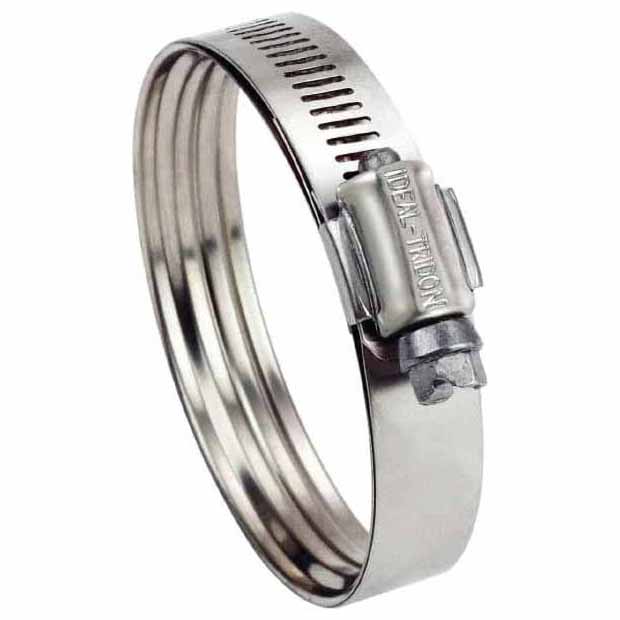

SmartSeal Clamp, 5/8" Band Width, 3.12" Min, 3.79" Max

SmartSeal® Hose Clamps are hybrid smart clamps designed to overcome seal leakage attributed to thermal or pressure changes while still meeting today's challenging lighter weight and space requirements. Through patented hybrid technology, SmartSeal® Clamps seal in a uniform, 360° pattern—thereby providing the optimal heavy-duty constant tension clamp without all the bulk or weight. SmartSeal™ Clamps are engineered to last longer and perform better than traditional clamps in the most demanding environments.

Features:

• Spring compensation over 360°.

• Improved clamp roundness eliminates leak paths at housing juncture.

• Integrated two-piece grooved design creates higher pressure loading compared to conventional worm gear, increasing resistance against potential leaks.

• Trough shape helps clamp "grip" by penetrating deeper into the hose wall resulting in a more effective cross sectional pressure footprint.

• 150 in/lb. Maximum torque at screw.


Integrated Two-Piece Design:

• SmartSeal® clamps are comprised of two main parts, the clamp assembly and the SmartLiner®.

• The SmartLiner® is a spring liner made of high-quality stainless steel integrated inside the clamp.

• Designed to be smart, the thin gauge steel expands and contracts around hose with temperature changes.

• Clamp rides on top of lubricated liner, distributing pressure more evenly around hose.
