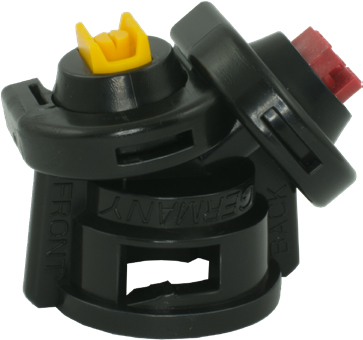

Spray Nozzle, SprayMax Dual Fan, .06 Size, for PWM Systems, No Venturi

Greenleaf SprayMax Dual Fan Nozzles (DF) employ conventional flat fan tips within a non-air inducted asymmetric dual cap. Tips are oriented 10° forward, 50° rearward to provide maximum coverage and penetration in complex canopies. SprayMax Dual Fan spray nozzles can be installed alternately across the boom, creating four different spray angles for greater coverage. SprayMax Dual Fan nozzles are PWM system approved and may be used with pulse width modulation systems such as Aim Command™, Capstan Synchro™, or Raven Hawkeye™. Nozzles create Medium to Fine droplet sizes ideal for contact critical broadcast applications and should be operated at the lowest pressures possible to reduce drift potent.

Greenleaf SprayMax Dual Fan nozzles are available in .02 to .20 sizes.
Manufacturer: Greenleaf Nozzles
SKU: GTDF06
VIEW CATALOG PAGE E1294
Save!
  • 10% on 50 (EA)
  • 10% on 50 (EA)
$10.20 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Orifice Size.06
ColorYellow/Red
SeriesSprayMax Dual Fan - DF
Spray Angle10 / 50
Spray PatternAsymmetric Dual Flat
Manufacturer Part NumberDF06

Additional Information


View Speed Range Charts
