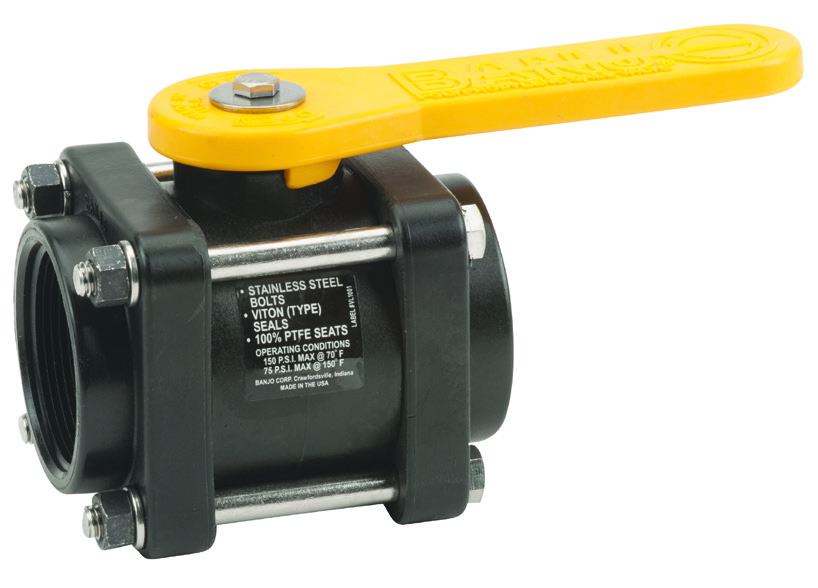

Banjo 2" Polypropylene Ball Valve, 6-Bolt Standard Port

The Banjo V200 valve is made to work with a variety of chemicals and other fluids. It has a 6-bolt body design for added strength and features 2-inch female pipe thread ports and a 1-1/2 inside diameter fluid path. For the full port valve see V200FP.

  • Stainless Steel Bolts
  • Viton® Seals
  • 100% Teflon Seats
  • 1/2" - 2": 150 PSI, 4": 75 PSI, 3": 100 PSI.
  • Precision molded in polypropylene reinforced with fiberglass for additional strength.
  • Self-aligning ball moves freely against the Teflon® seals for smooth operation. The valve opens and closes with very little pressure on the handle.
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
  • Viton® "O" ring stem seal. S.S. Bolts.
  • Teflon® self-lubricating stem bushings and seats cannot stick or bind.
Manufacturer: Banjo Valves & Fittings
SKU: TKV200
VIEW CATALOG PAGE E0325
Save!
  • 5% on 24 (EA)
$46.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Operation TypeManual
Flow StyleStandard Port
Body MaterialPolypropylene
Port Size A2"
Port Size B2"
Opening Thru Ball1-1/2"
Port Type AFPT
Port Type BFPT
Max PSI150
SeatPTFE
Manufacturer Part NumberV200

Additional Information

Viton® is a registered trademark of DuPont Performance Elastomers
