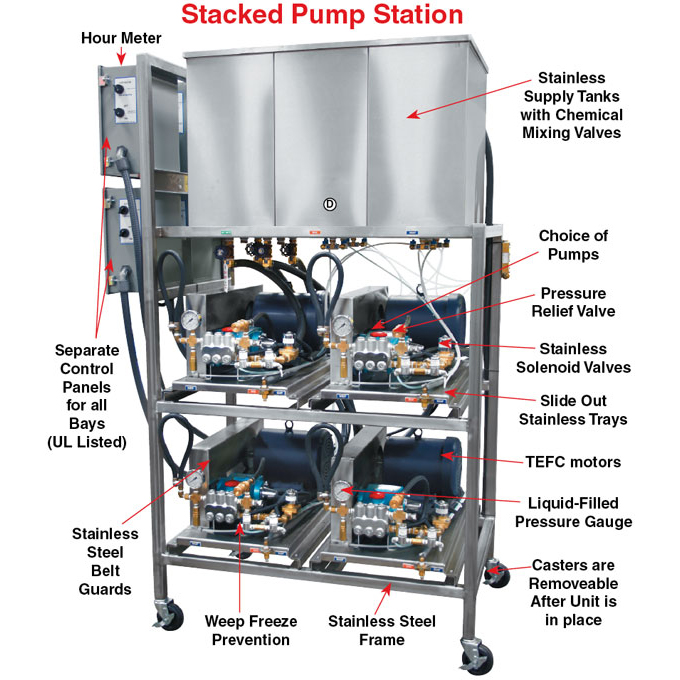

Stacked Pump Stations, for Car Wash • Truck Wash • Plant Washdown • Industrial Cleaning

All the features you want, in an Easy-to-Service, Compact High Pressure Wash Station!

Station Features:

• PUMPS: Pulley-drive CAT Plunger Pumps are standard. (GENERAL • AR • GIANT • UDOR are also available).
• ELECTRICAL PANELS: High quality, solid state controls for long trouble-free service. (UL Listed).
• STAINLESS STEEL SUPPLY TANKS. Large capacity, soap, wax, water
• MOTOR: 5 HP, 230 Volt, TEFC Baldor, Single or Three phase. (208/460 Volt also available).
• TANK HEATER in water tank.
• SOLENOID VALVES: Stainless Steel solenoid valves for both soap and wax lines. Double inlet design for hot and cold water inlets.
• GRAVITY-FEED SYSTEMS feature a stainless holding tanks with float valves for uninterrupted water supply.
• PRESSURE GAUGES: Stainless case, Glycerin-filled gauges for accurate readings of output pressure.
• HOUR METER: Ideally suited for indication of pump system running time for maintenance anLANCED PRESSURE RELIEF VALVE or UNLOADER VALVES: Allows for the use of trigger guns as well as protecting the systemmagainst damage from, excessive pressures.FRAME: Constructed with adjustable isolators on each leg. Stainless base plates and belt guards.
• STACKED MODELS:Height is 74". Depth is 32". Width is 52". (2, 3 or 4 Bay). 5 & 6 Bay are 78” wide. Narrow design.
