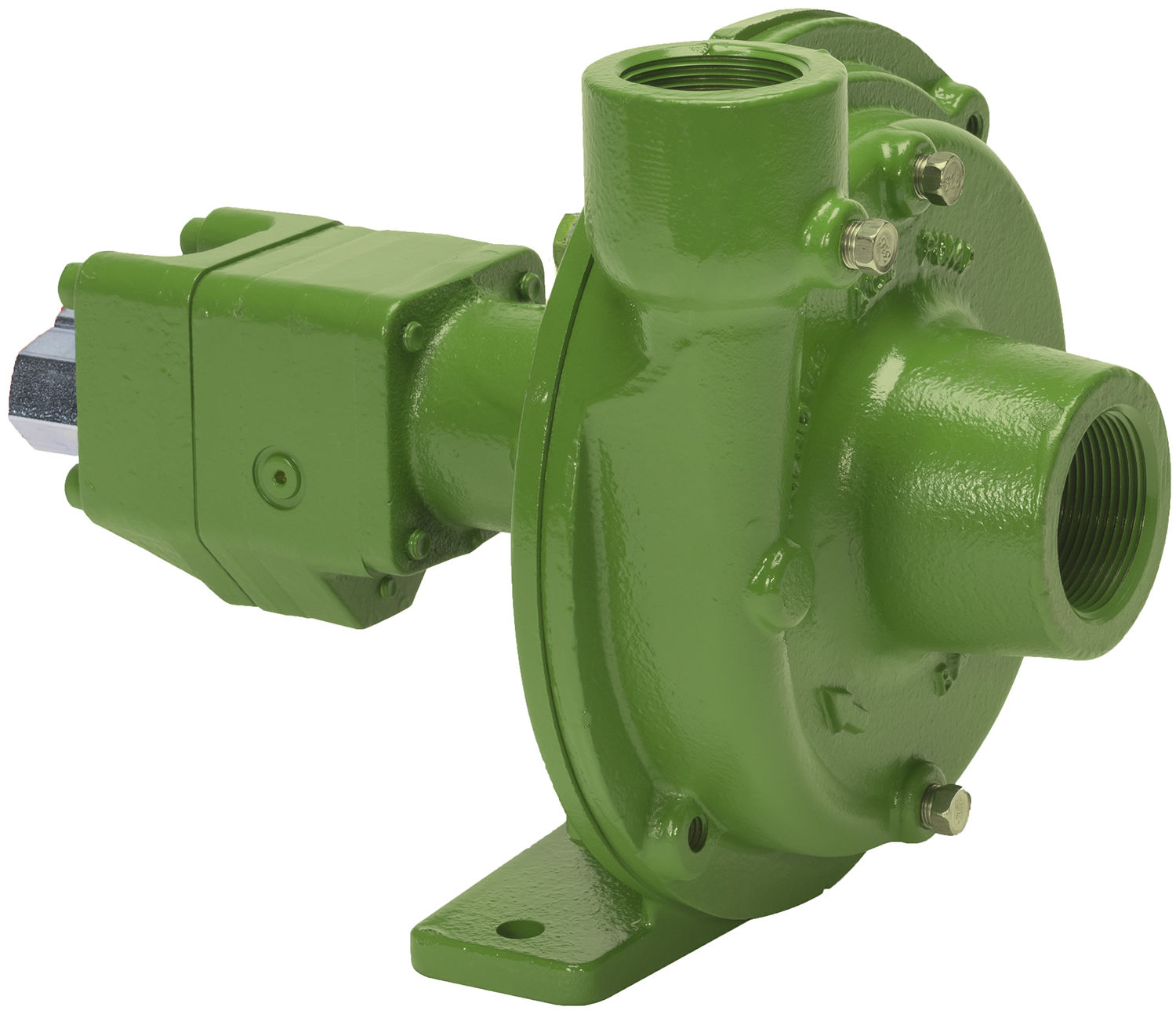

Ace FMC150HYD206 Cast Iron Centrifugal Sprayer Pump with Hydraulic Motor

The Ace FMC150HYD206 is a Cast Iron straight centrifugal sprayer pump. It has 1-1/2" x 1-1/4" FPT Ports with #206, 7 GPM hydraulic motor. The flow rate is 120 GPM MAX, and the pressure is up 120 PSI @ 5100 RPM.

For Pressure Compensating Closed Center Systems (John Deer type), Load Sensing Closed Center Systems (Case-IH type), and Open Center systems rated 7-16 GPM Equipped with restrictor orifice.

These cast iron straight centrifugal frame mounted pumps are driven by a close coupled hydraulic motor. The hydraulic motors have built in reverse check valves to prevent seal damage due to impeller coasting and reverse rotation. Each motor also has an integral needle valve to by-pass excess hydraulic fluid on open center systems. Valox Impeller; Cast Iron optional. Stainless shafts and wear rings. Standard Viton® mechanical seals.
Viton® is a registered trademark of DuPont Performance Elastomers.

Manufacturer: Ace Pumps
SKU: ACFMC150HYD206
VIEW CATALOG PAGE E0233
$989.00 / EA
i h
Ship to

DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

*

Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Pump TypeCentrifugal
Body MaterialCast Iron
Seal MaterialSilicon Carbide/Viton®
Inlet Size1-1/2"
Outlet Size1-1/4"
Inlet ConnectionFlange
Outlet ConnectionFlange
Max GPM120
Max PSI120
Motor Max RPM5100
Pump MfgAce Pumps
DriveHydraulic Motor
Drive StyleClose Coupled
Manufacturer Part NumberFMC-150-HYD-206
